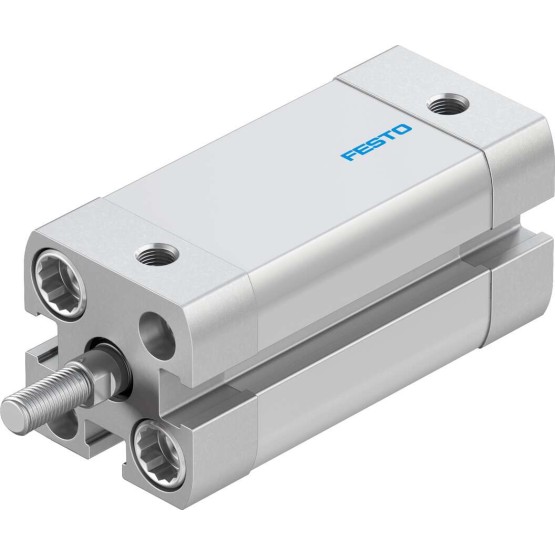

ADN-12-20-A-P-A

$62.89

Compact Cylinder is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:ADN-12-20-A-P-A

FESTO Order Number:536207

SKU: ADN-12-20-A-P-A Category: Tag:

Description

Stroke [mm] 20
Piston diameter 12 mm
Piston rod thread M5
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Complies to standard ISO 21287
Piston rod end Male thread
Position detection For proximity switch
Variants One-sided piston rod
Operating pressure [bar] 1 to 10
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
ambient temperature [??C] -20 to 80
Impact energy at the end positions [J] 0,07
Theoretical force at 6 bar, Return flow [N] 51
Theoretical force at 6 bar, flow [N] 68
Moving mass at 0 mm stroke [g] 9
Weight supplement per 10 mm stroke [g] 12
Base weight at 0 mm stroke [g] 77
Supplement moved mass per 10 mm stroke [g] 2
Fastening type With throughway boresWith female threadWith AccessoriesSelectively:
Pneumatic connection M5
Material information RoHs compliant
Cover material aluminiumanodized
Seals material TPE-U(PUR)
Piston rod material High-alloyed steel
Cylinder tube material Aluminium wrought alloySmooth anodised
