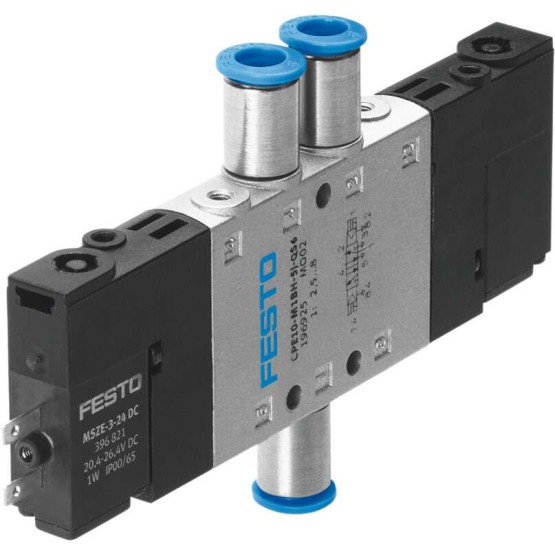

Description
Valve function 5/2 bistable
Actuation type Electrical
Build.width [mm] 10
Normal nominal flow [l/min] 320
Operating pressure [bar] 2.5 to 8
Construction set up Piston pusher
Permission c UL us – Recognized (OL)
Maritime classification see Certificate
Protection category IP65With Socketacc. to IEC 60529
Nominal width [mm] 4
Sealing principle Soft
installation position arbitrary
Hand assist actuation With Accessories ratchetingtentative
Control type pilot operated
Control air supply Internal
Flow direction Not reversible
Valve space – labelling Sign carrier
??berdeckung positive ??berdeckung
Power-on time 100 % mit Haltestromabsenkung
Max. positive test impulse at 0 signal [??s] 1.200
Max. negative test impulse for 1 signal [??s] 900
Coil characteristic value 24 V DC: 1,28 W
Permitted voltage oscillations -15 % / +10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 2 – moderate corrosion stress
Medium temperature [??C] -5 to 50
ambient temperature [??C] -5 to 50
Electrical connection 2 pin
Fastening type With throughway bores
Exhaust control connection 82 M3
Control air 12 connection M3
Pneumatic connection 1 QS-6
Pneumatic connection 2 QS-6
Pneumatic connection 3 M7
Material information RoHs compliant
Seals material NBR
Housing material Aluminium die casting
Exhaust function Can be throttled
Exhaust control connection 84 M3
Control air 14 connection M3
Pneumatic connection 4 QS-6
Pneumatic connection 5 M7
Shifting time um [ms] 8
