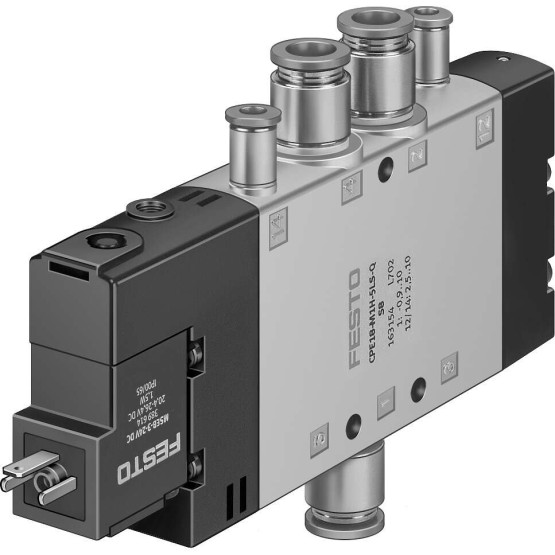

CPE18-M1H-5LS-QS-8

$202.45

Solenoid Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:CPE18-M1H-5LS-QS-8

FESTO Order Number:163154

SKU: CPE18-M1H-5LS-QS-8 Category: Tag:

Description

Valve function 5/2 monostable
Actuation type Electrical
Build.width [mm] 18
Normal nominal flow [l/min] 850
Operating pressure [bar] -0.9 to 10
Construction set up Piston pusher
Reset mode Pneumatic spring
Permission c UL us – Recognized (OL)
Maritime classification see Certificate
Protection category IP65With Socketacc. to IEC 60529
Nominal width [mm] 8
Sealing principle Soft
installation position arbitrary
Hand assist actuation With Accessories ratchetingtentative
Control type pilot operated
Control air supply external
Flow direction Reversible
Valve space – labelling Sign carrier
??berdeckung positive ??berdeckung
Shifting time off [ms] 20
Shifting time on [ms] 26
Power-on time 100 %
Max. positive test impulse at 0 signal [??s] 3.300
Max. negative test impulse for 1 signal [??s] 3.100
Coil characteristic value 24 V DC: 1,5 W
Permitted voltage oscillations -15 % / +10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 2 – moderate corrosion stress
Medium temperature [??C] -5 to 50
ambient temperature [??C] -5 to 50
Electrical connection Wiring diagram Form C acc. to EN 175301-803
Fastening type With throughway bores
Exhaust control connection 82 M5
Control air 12 connection M5
Pneumatic connection 1 QS-8
Pneumatic connection 2 QS-8
Pneumatic connection 3 G1/4
Material information RoHs compliant
Seals material NBR
Housing material Aluminium die casting
Exhaust function Can be throttled
Exhaust control connection 84 M5
Control air 14 connection M5
Pneumatic connection 4 QS-8
Pneumatic connection 5 G1/4
Control pressure [bar] 2.5 to 10
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
