CRDSNU-B-40-125-PPS-A-MG-A1

$256.84

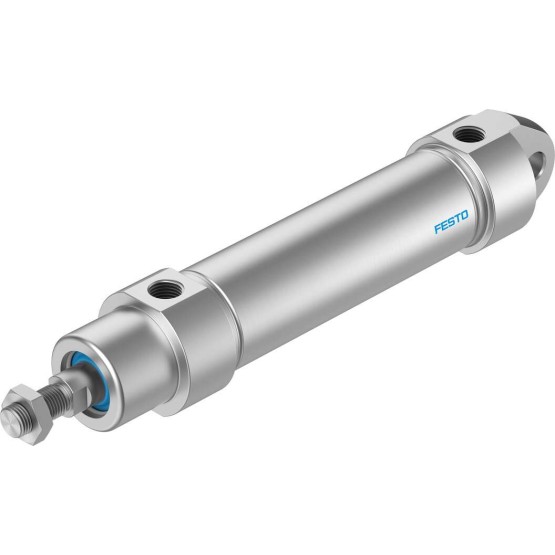

Round Cylinder is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:CRDSNU-B-40-125-PPS-A-MG-A1

FESTO Order Number:8073983

SKU: CRDSNU-B-40-125-PPS-A-MG-A1 Category: Tag:

Description

Stroke [mm] 125
Piston diameter 40 mm
Based on standard ISO 15552
Dampening PPS: Self-setting pneumatic end position dampening
installation position arbitrary
Construction set up Pistonpiston rodcylinder tube
Position detection For proximity switch
Operating pressure [bar] 1 to 10
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 4 – particularly severe corrosion stress
Food compatibility See expanded material information
ambient temperature [??C] 0 to 80
Theoretical force at 6 bar, Return flow [N] 633
Theoretical force at 6 bar, flow [N] 754
Moving mass at 0 mm stroke [g] 232,0
Weight supplement per 10 mm stroke [g] 23,8
Base weight at 0 mm stroke [g] 1.327
Supplement moved mass per 10 mm stroke [g] 15,8
Fastening type With Accessories
Pneumatic connection G1/4
Material information RoHs compliant
Cover material High-alloyed stainless steels
Piston rod material High-alloyed stainless steels
Cylinder tube material High-alloyed stainless steels
