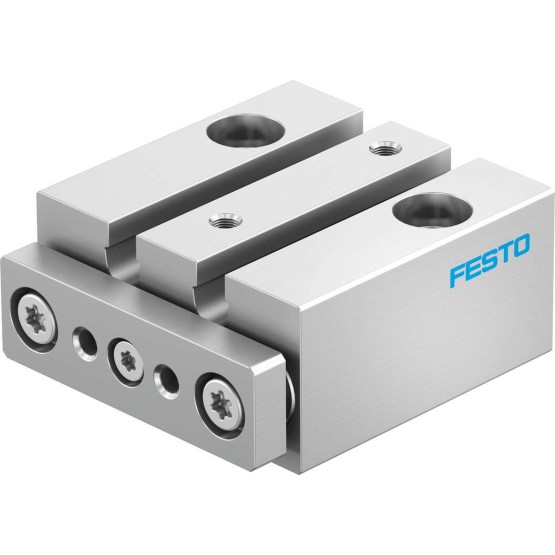

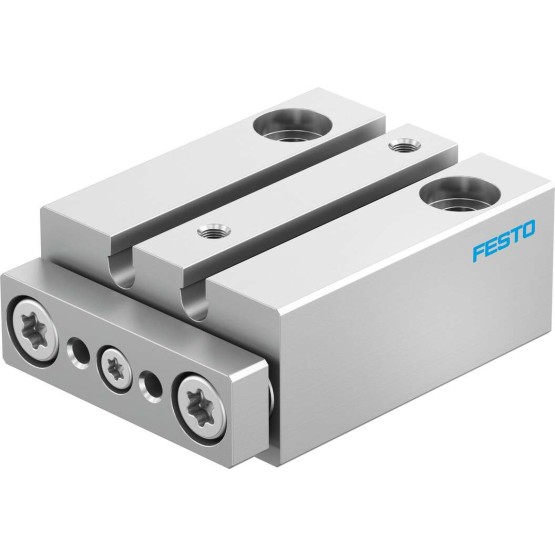

Description
Centre of mass distance of payload to Joch plate [mm] 10
Stroke [mm] 5
Piston diameter 10 mm
Operating mode actuator unit Joch
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Guide sliding guide
Construction set up Guide
Position detection For proximity switch
Operating pressure [bar] 1.5 to 8
Max. speed [m/s] 1,7
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 – low corrosion stress
ambient temperature [??C] -10 to 60
Impact energy at the end positions [J] 0,035
Max. permitted moment load Mx depending on stroke [Nm] 0,057
Max. usable load depending on the stroke at a defined distance xs [N] 3,70
Theoretical force at 6 bar, Return flow [N] 47
Theoretical force at 6 bar, flow [N] 68
Moving mass [g] 10,0
Product weight [g] 38,0
Pneumatic connection M3
Material information RoHs compliant
Cover material High-alloyed stainless steels
Seals material NBR
Housing material Aluminium wrought alloy, anodised
Piston rod material High-alloyed stainless steels
Torsional play [deg] 0,1
Dynamic seals material HNBR
End plate material Aluminium wrought alloy, anodised
Werkstoff F??hrungsstange High-alloyed stainless steels
