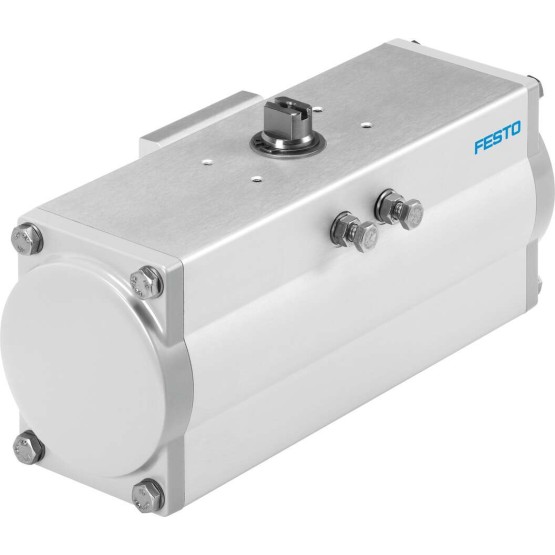

Semi-Rotary Drive is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .


FESTO Order Number:8065339

SKU: DFPD-120-RP-180-RD-F0507 Category: Tag:


Position drive dimensions 120
Flange drilling screen F0507
Swivel angle [deg] 180
Adjustable range end position at 0?? [deg] -5 to 5
Adjustable range end position at 90?? [deg] -5 to 5
Shaft connection Depth [mm] 19
Standard connection to fitting ISO 5211
installation position arbitrary
Principle of operation double acting
Construction set up Toothed rack/pinion
Closing direction Right closing
Valve connection corresponds to standard VDI/VDE 3845 (NAMUR)
Connection for position controllers and position feedback signal comply with standard VDI/VDE 3845 Size AA 1
Safety Integrity Level (SIL) Produkt kann eingesetzt werden in SRP/CS bis SIL 2 High Demand
Operating pressure [bar] 2 to 8
Nominal operating pressure [bar] 5,5
CE certificate (see declaration of conformity) to EU EX protection directive (ATEX)
Certified awarding point T??V Rhineland
ATEX gas category II 2G
ATEX dust category II 2D
Ex ignition protection type gas Ex h IIC T4 Gb X
Ex ignition protection type dust Ex h IIIC T105??C Db X
Ex ambient temperature -20??C <= Ta <= +80??C Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Information about operating and control medium Oiled operation possible (required in further operations)Pressure dew point 10??C under ambient and medium temperature Bearing temperature [??C] -20 to 60 ambient temperature [??C] -20 to 80 Rotary torque for nominal operating pressure and 0?? pivot angle [Nm] 117,4 Rotary torque for nominal operating pressure and 90?? pivot angle [Nm] 117,4 Information about torque The operating torque of the actuator may not be higher than the maximum permitted torque listed in ISO 5211, related to the size of the fastening flange and the coupling. Air consumption a 6 bar per cycle 0??-90??-0?? [LTR] 12,8 Product weight [g] 7.122 Shaft connection T17 Pneumatic connection G1/4 Material information RoHs compliant Connection plate material Aluminium wrought alloy, anodised Cover material Alu-Druckguss, beschichtet Seals material NBR Housing material Aluminium wrought alloy, anodised Piston material Aluminium die casting Bearing material POM Lug material Steel Screws material High-alloyed stainless steels Shaft material Nickel-plated steel
