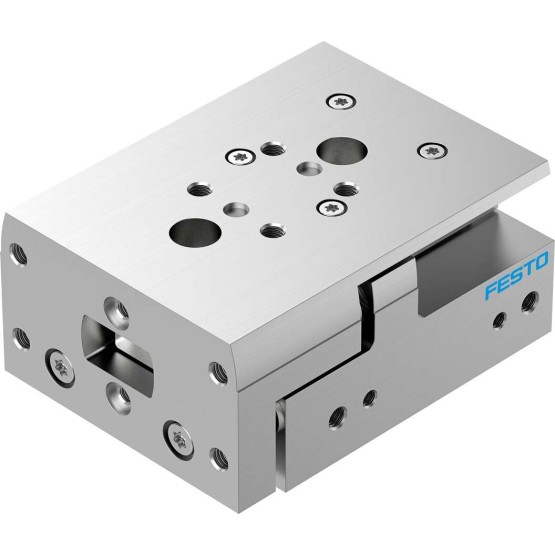

Mini Slide is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .


FESTO Order Number:8078857

SKU: DGST-16-50-E1A Category: Tag:


Stroke [mm] 50
Piston diameter 16 mm
Operating mode actuator unit Joch
Dampening Elastomerd?mpfung, beidseitig, Hub nicht einstellbar
installation position arbitrary
Guide ball guide
Construction set up DoppelkolbenJochKolbenstangeSchlitten
Position detection For proximity switch
Operating pressure [bar] 1 to 8
Max. speed [m/s] 0,5
Repeatability <= 0,3 mm Principle of operation double acting Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Information about operating and control medium Oiled operation possible (required in further operations) Corrosion resistant class KBK 1 - low corrosion stress ambient temperature [??C] -10 to 60 Impact energy at the end positions [J] 0,150 Dampening length [mm] 0,8 Max. force Fy [N] 900 Max. force Fz [N] 900 Max. torque Mx [Nm] 11,3 Max. torque My [Nm] 8,0 Max. torque Mz [Nm] 8,0 Theoretical force at 6 bar, Return flow [N] 207 Theoretical force at 6 bar, flow [N] 241 Moving mass [g] 342,0 Product weight [g] 690,0 Fastening type With throughway bores Pneumatic connection M5 Material information Copper and PTFE-freeRoHs compliant Cover material Aluminium wrought alloy Seals material HNBR Werkstoff F??hrung TPE-EPOMhochlegierter Stahl Housing material Aluminium wrought alloy Piston rod material High-alloyed stainless steels
