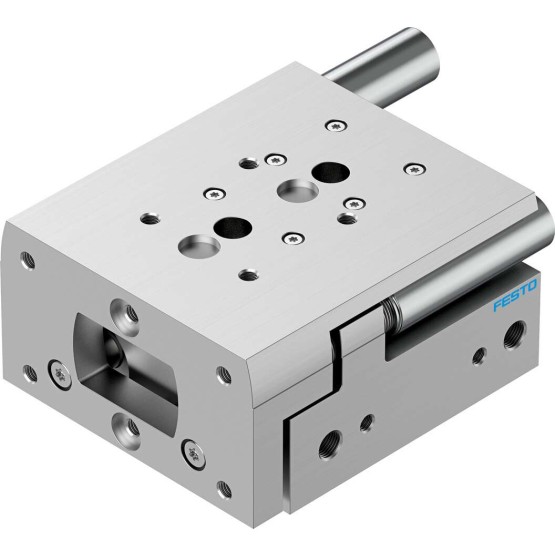

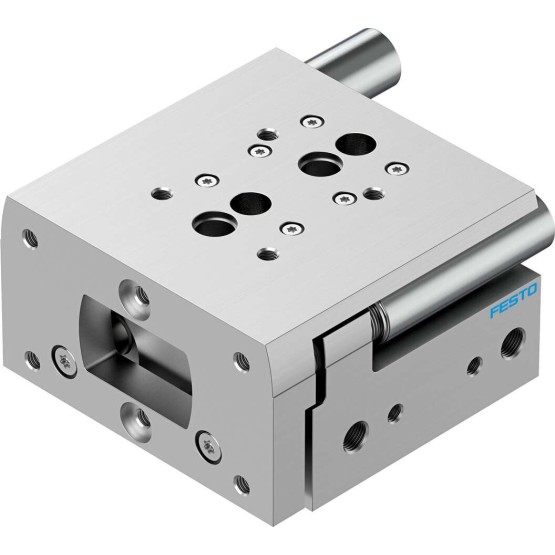

Description
Stroke [mm] 20
Piston diameter 25 mm
Operating mode actuator unit Joch
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Guide Ball cage guide
Construction set up DoppelkolbenJochKolbenstangeSchlitten
Position detection For proximity switch
Operating pressure [bar] 1 to 8
Max. speed [m/s] 0,8
Repeatability <= 0,3 mm
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 - low corrosion stress
ambient temperature [??C] -10 to 60
Impact energy at the end positions [J] 0,450
Dampening length [mm] 1,2
Max. force Fy [N] 1.460
Max. force Fz [N] 1.460
Max. torque Mx [Nm] 16,0
Max. torque My [Nm] 16,0
Max. torque Mz [Nm] 16,0
Theoretical force at 6 bar, Return flow [N] 495
Theoretical force at 6 bar, flow [N] 589
Moving mass [g] 898,5
Product weight [g] 1.801,0
Fastening type With throughway bores
Pneumatic connection G1/8
Material information Copper and PTFE-freeRoHs compliant
Cover material Aluminium wrought alloy
Seals material HNBR
Werkstoff F??hrung POMTPE-Ehochlegierter Stahl
Housing material Aluminium wrought alloy
Piston rod material High-alloyed stainless steels
Alignable end position range / Length front [mm] 46,0
Alignable end position range / Length rear [mm] 46,0
