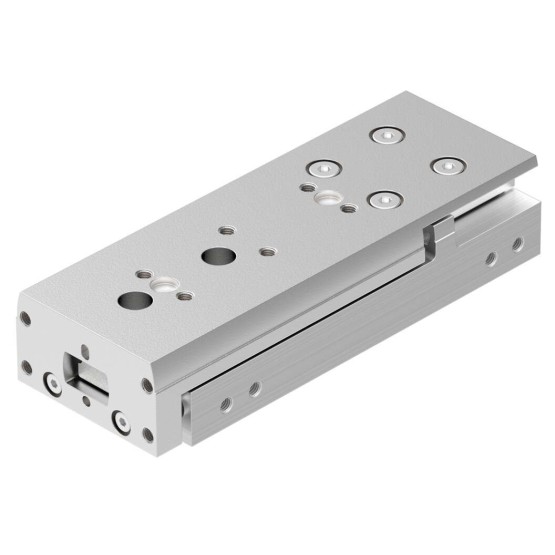

DGST-8-80-Y12A

$792.70

Mini Slide is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DGST-8-80-Y12A

FESTO Order Number:8085165

SKU: DGST-8-80-Y12A Category: Tag:

Description

Stroke [mm] 80
Piston diameter 8 mm
Operating mode actuator unit Joch
Dampening Y12: externe hydraulische D?mpfung
installation position arbitrary
Guide ball guide
Construction set up DoppelkolbenJochKolbenstangeSchlitten
Position detection For proximity switch
Operating pressure [bar] 1.5 to 8
Max. speed [m/s] 0,5
Repeatability <= 0,02 mm Principle of operation double acting Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Information about operating and control medium Oiled operation possible (required in further operations) Corrosion resistant class KBK 1 - low corrosion stress ambient temperature [??C] -10 to 60 Impact energy at the end positions [J] 0,180 Dampening length [mm] 4,0 Max. force Fy [N] 375 Max. force Fz [N] 375 Max. torque Mx [Nm] 3,2 Max. torque My [Nm] 3,0 Max. torque Mz [Nm] 3,0 Theoretical force at 6 bar, Return flow [N] 45 Theoretical force at 6 bar, flow [N] 60 Moving mass [g] 171,2 Product weight [g] 325,6 Fastening type With throughway bores Pneumatic connection M5 Material information Copper and PTFE-freeRoHs compliant Cover material Aluminium wrought alloy Seals material HNBR Werkstoff F??hrung POMTPE-Ehochlegierter Stahl Housing material Aluminium wrought alloy Piston rod material High-alloyed stainless steels Alignable end position range / Length front [mm] 15,8 Alignable end position range / Length rear [mm] 16,1
