DLGF-G-40-400-PPSA

DLGF-G-40-400-PPSA

$577.27

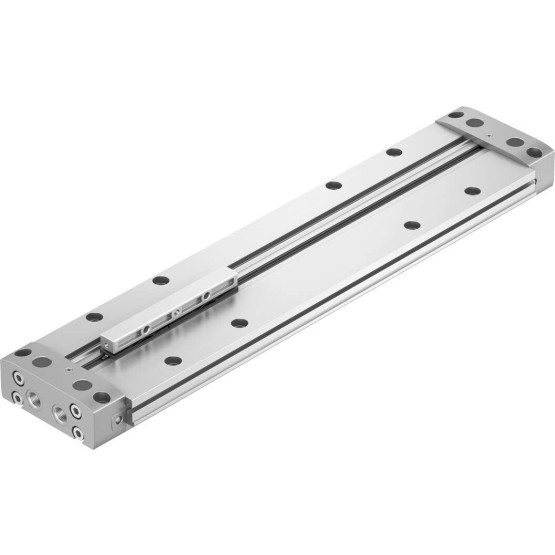

Linear Drive is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DLGF-G-40-400-PPSA

FESTO Order Number:5074740

SKU: DLGF-G-40-400-PPSA Category: Tag:

Description

Stroke [mm] 400
Piston diameter 40 mm
Dampening PPS: Self-setting pneumatic end position dampening
installation position arbitrary
Guide Base guide
Carrier principle Form-fitting (slot)
Position detection For proximity switch
Operating pressure [bar] 1.5 to 8
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 – low corrosion stress
ambient temperature [??C] 0 to 60
Dampening length [mm] 12,9
Max. force Fy [N] 0
Max. Kraft -Fz (hin zum Antrieb) [N] 662
Max. Kraft +Fz (weg vom Antrieb) [N] 456
Max. torque Mx [Nm] 7,7
Max. torque My [Nm] 37,6
Max. torque Mz [Nm] 11,2
Theoretical force at 6 bar, Return flow [N] 754
Theoretical force at 6 bar, flow [N] 754
Moving mass [g] 450
Product weight [g] 6.456
Alternative connections See product drawing
Fastening type mit Zubeh?rDirektbefestigung ??ber Durchgangsbohrung
Pneumatic connection G1/4
Material information RoHS konformkupferfrei
Cover material Aluminium-Guss, beschichtet
Seals material NBRTPE-U(PU)
Housing material Anodised aluminium
