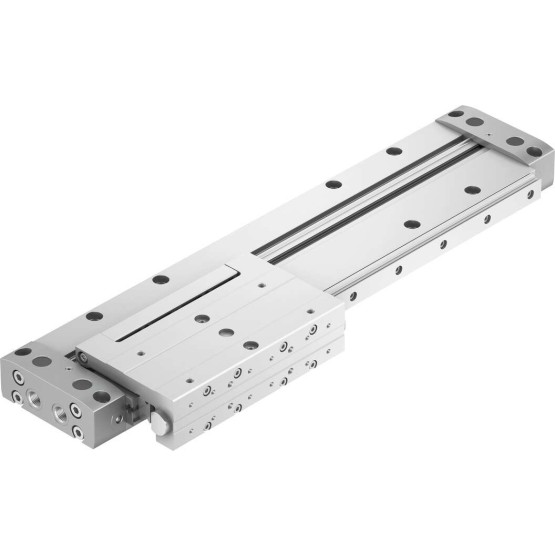

Description
Stroke [mm] 500
Piston diameter 32 mm
Dampening PPS: Self-setting pneumatic end position dampening
installation position arbitrary
Guide ball guide
Carrier principle Form-fitting (slot)
Position detection For proximity switch
Operating pressure [bar] 1.5 to 8
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 – low corrosion stress
ambient temperature [??C] 0 to 60
Dampening length [mm] 11,6
Max. force Fy [N] 1.300
Max. Kraft -Fz (hin zum Antrieb) [N] 1.600
Max. Kraft +Fz (weg vom Antrieb) [N] 950
Max. torque Mx [Nm] 30,0
Max. torque My [Nm] 50,0
Max. torque Mz [Nm] 50,0
Theoretical force at 6 bar, Return flow [N] 483
Theoretical force at 6 bar, flow [N] 483
Moving mass [g] 1.290
Product weight [g] 6.289
Alternative connections See product drawing
Fastening type mit Zubeh?rDirektbefestigung ??ber Durchgangsbohrung
Pneumatic connection G1/8
Material information RoHS konformkupferfrei
Cover material Aluminium-Guss, beschichtet
Seals material NBRTPE-U(PU)
Housing material Anodised aluminium
