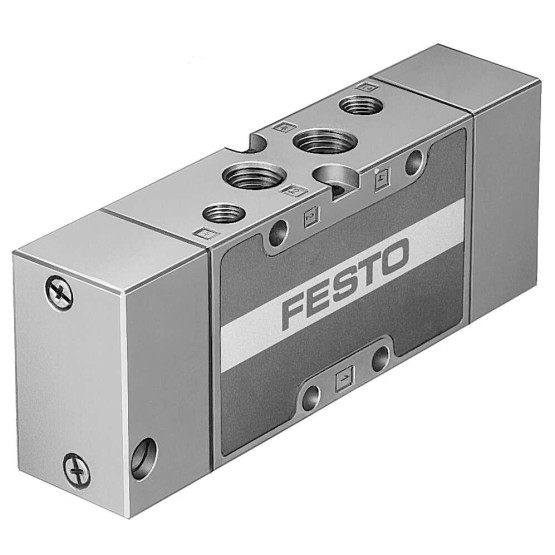

Description
Valve function 5/2 bistable
Actuation type pneumatic
Build.width [mm] 32
Normal nominal flow [l/min] 1.600
Operating pressure [bar] -0.9 to 10
Construction set up Piston pusher
Nominal width [mm] 10
Pitch dimension [mm] 33
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Hand assist actuation none
Control type Direct
Control air supply external
Flow direction Reversible
??berdeckung positive ??berdeckung
Control pressure [bar] 2 to 10
b-value 0.38
C-value [l/sbar] 6,35
Max. switching frequency [Hz] 3
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 – low corrosion stress
Bearing temperature [??C] -40 to 60
Medium temperature [??C] -10 to 60
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [??C] -10 to 60
Product weight [g] 375
Fastening type With throughway bores
Control air 14 connection G1/8
Pneumatic connection 1 G1/4
Pneumatic connection 2 G1/4
Pneumatic connection 3 G1/4
Pneumatic connection 4 G1/4
Pneumatic connection 5 G1/4
Material information RoHs compliant
Seals material NBR
Housing material Aluminium die casting
Shifting time um [ms] 3
Control air 12 connection G1/8
CE certificate (see declaration of conformity) to EU EX protection directive (ATEX)
ATEX gas category II 2G
ATEX dust category II 2D
Ex ignition protection type gas Ex h IIC T4 Gb
Ex ignition protection type dust Ex h IIIC T130??C Db
Ex ambient temperature -10??C <= Ta <= +60??C
