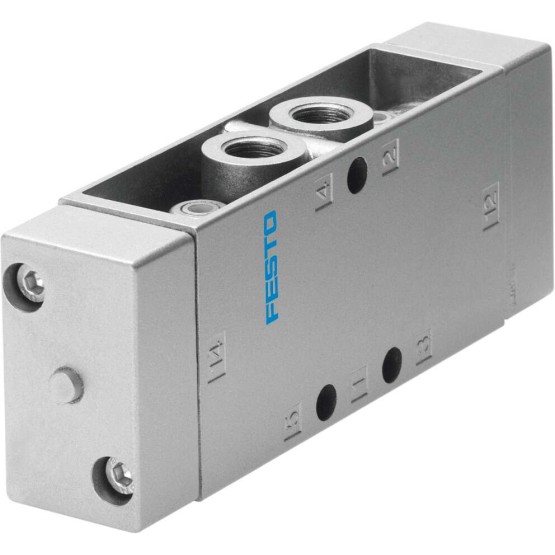

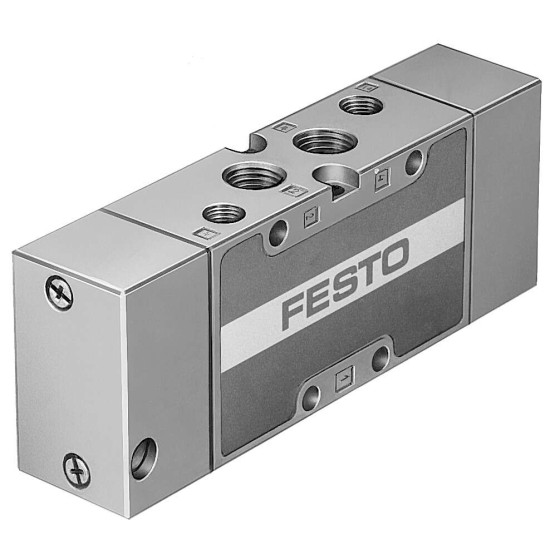

Description
Valve function 5/2 bi-stable dominated
Actuation type pneumatic
Build.width [mm] 30,5
Normal nominal flow [l/min] 1.100
Operating pressure [bar] 0 to 8
Construction set up Plate seat
Nominal width [mm] 7
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Control type Direct
Control air supply external
Flow direction Not reversible
??berdeckung negative ??berdeckung
Control pressure [bar] 2.3 to 10
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 – low corrosion stress
Bearing temperature [??C] -20 to 60
Medium temperature [??C] -10 to 60
ambient temperature [??C] -10 to 60
Product weight [g] 330
Fastening type With throughway boresSelectively:on terminal strip
Control air 12 connection G1/8
Pneumatic connection 1 G1/4
Pneumatic connection 2 G1/4
Pneumatic connection 3 G1/4
Material information RoHs compliant
Seals material NBRTPE-U(PU)
Housing material Aluminium die casting
Pitch dimension [mm] 32
Max. switching frequency [Hz] 12
Shifting time um [ms] 12
Pneumatic connection 4 G1/4
Pneumatic connection 5 G1/4
Protection category IP65
Control air 14 connection G1/8
