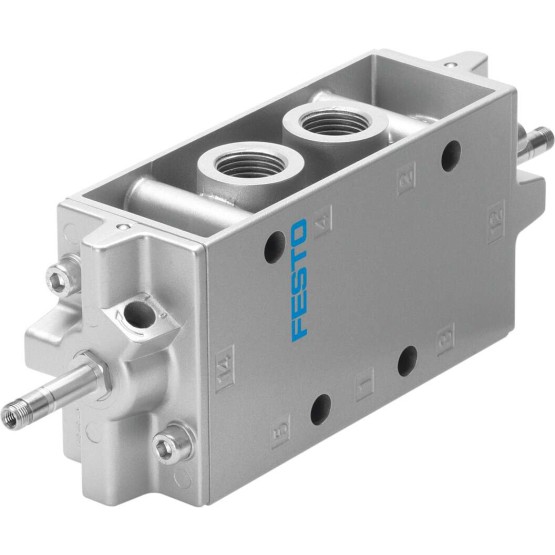

Description
Valve function 5/2 bi-stable dominated
Actuation type Electrical
Build.width [mm] 26,0
Normal nominal flow [l/min] 601
Operating pressure [bar] 2.5 to 8
Construction set up Plate seat
Nominal width [mm] 5
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Control type pilot operated
Flow direction Not reversible
??berdeckung negative ??berdeckung
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 – low corrosion stress
Bearing temperature [??C] -20 to 60
Medium temperature [??C] -10 to 60
ambient temperature [??C] -5 to 40
Product weight [g] 260
Electrical connection Via f-coil, order separately
Fastening type With throughway boresSelectively:on terminal strip
Pneumatic connection 1 G1/8
Pneumatic connection 2 G1/8
Pneumatic connection 3 G1/8
Material information RoHs compliant
Seals material NBRTPE-U(PU)
Housing material Aluminium die casting
Pitch dimension [mm] 27
Hand assist actuation Ratcheting
Max. switching frequency [Hz] 16
Shifting time um [ms] 16
Pneumatic connection 4 G1/8
Pneumatic connection 5 G1/8
Permission c UL us – Recognized (OL)
Protection category IP65
Max. positive test impulse at 0 signal [??s] 2.200
Max. negative test impulse for 1 signal [??s] 3.700
Coil characteristic value See solenoid coil, order separately
Exhaust control connection 82 M5
Exhaust control connection 84 M5
