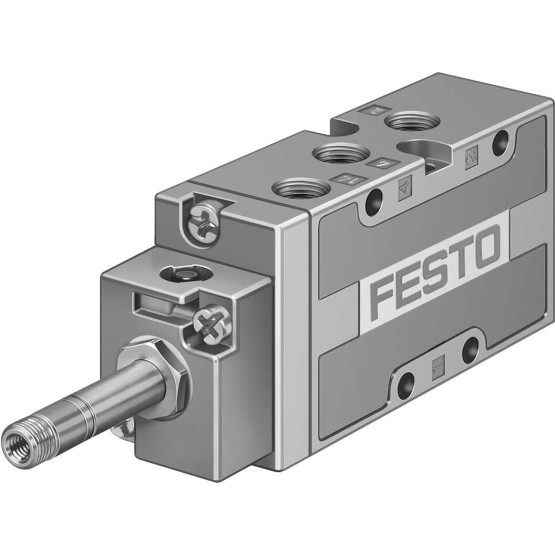

Solenoid Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .


FESTO Order Number:30992

SKU: MFH-5-1/8-L-S-B Category: Tag:


Valve function 5/2 monostable
Actuation type Electrical
Build.width [mm] 26
Normal nominal flow [l/min] 1.000
Operating pressure [bar] -0.9 to 10
Construction set up Piston pusher
Reset mode Pneumatic spring
Nominal width [mm] 8
Sealing principle Soft
installation position arbitrary
Hand assist actuation tentative
Control type pilot operated
Control air supply external
Flow direction Reversible
??berdeckung positive ??berdeckung
Control pressure [bar] 3 to 10
Max. switching frequency [Hz] 3
Shifting time off [ms] 22
Shifting time on [ms] 27
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 – low corrosion stress
Bearing temperature [??C] -40 to 60
Medium temperature [??C] -10 to 60
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [??C] -5 to 40
Product weight [g] 280
Fastening type on PR stripWith throughway boresSelectively:
Control air 14 connection G1/8
Pneumatic connection 1 G1/8
Pneumatic connection 2 G1/8
Pneumatic connection 3 G1/8
Pneumatic connection 4 G1/8
Pneumatic connection 5 G1/8
Material information RoHs compliant
Seals material NBR
Housing material Aluminium die casting
Control air 12 connection G1/8
Max. positive test impulse at 0 signal [??s] 2.200
Max. negative test impulse for 1 signal [??s] 3.700
Exhaust control connection 84 M5
Electrical connection Via f-coil, order separately
