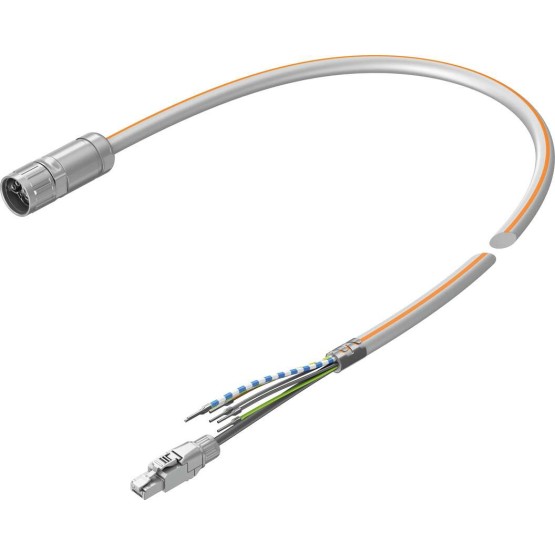

Description
Line designation Without sign holder
Electrical connection 1, function Field device screen
Electrical connection 1, design round
Electrical connection 1, connection type Hybrid-Dose
Electrical connection 1, cable output straight
Electrical connection 1, connection technology M23x1
Electrical connection 1, number of pins / wires 15
Electrical connection 1, occupied pin / wire 12
Electrical connection 2, function Control screen
Electrical connection 2, connection type Stecker und Kabel
Electrical connection 2, connection technology RJ45 und offenes Ende
Electrical connection 2, number of pins / wires 14
Electrical connection 2, occupied pin / wire 12
Operating voltage range DC [V] 0 bis 850
Cable length [MTR] 15,00
Line properties Cable track capable
Bending radius, moving cable placement [mm] >= 90 mm
Cable diameter [mm] 12,0
Cable set up geschirmt4 x 0,75 mm2 + 1 x (2 x 0,75 mm2) + 1 x (2 x 0,24 mm2 + 2 x 2 x 0,15 mm2)
Conductor – nominal cross-section [mm2] 0,150,240,75
Wire ends Wire end sleeve
Protection category IP67
Information about protection category In mounted condition
ambient temperature [??C] -40 to 90
Ambient temperature for moving cable placements [??C] -25 to 80
CE certificate (see declaration of conformity) to EU low voltage directive
Material information halogen freeRoHs compliant
Cable sleeve material TPE-U(PUR)
Cable shield colour Grey
Corrosion resistant class KBK 1 – low corrosion stress
Insulation sleeve material PP
Operating voltage range AC [V] 0 to 630
Electrical connection 2, cable output straight
Degree of contamination 1
Current carrying capacity at 40??C [A] 11,7
Surge voltage strength [kV] 6,00
Bending radius, permanent cable placement [mm] >= 48 mm
Test conditions line Test conditions on request
Based on standard EN 61984
Product weight [g] 5.250
Electrical connection 1, fastening type Screw lock
Tolerance cable diameter ?I 0,3 mm
