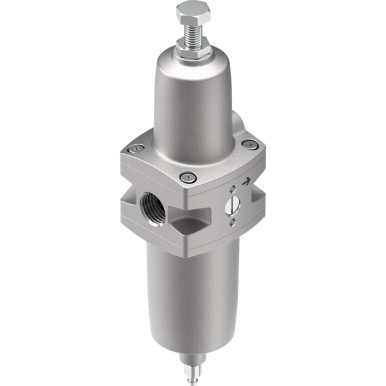

Description
size 64
Model series P
Actuation fuse Regulierschraube mit Konterung
installation position vertical ?I 5??
Filter porosity [??m] 40
Condensate drain Manually rotating
Construction set up Filter regulator without pressure gauge
Complies to standard NACE MR0175/ISO 15156 (Geh?use und Schale)
Max. condensate amount [ml] 30
Controller function mit Sekund?rentl??ftungmit Vordruckkompensation
pressure display G1/4 prepared
Operating pressure [bar] 1 to 20
Pressure regulation range [bar] 0.5 to 12
Max. pressure hysteresis [bar] 0,2
Max. normal flow [l/min] 6.440
Normal nominal flow [l/min] 3.045
Operating medium Inert gasesCompressed air to ISO 8573-1:2010 [-:4:-]
Information about operating and control medium Oiled operation possible (required in further operations)
Bearing temperature [??C] -60 bis 80
Air purity class at the output Compressed air to ISO 8573-1:2010 [7:4:4]
Medium temperature [??C] -60 bis 80
ambient temperature [??C] -60 bis 80
Product weight [g] 1.910
Fastening type Leitungseinbauwahlweise:mit Befestigungsbausatz
Pressure gauge connection G1/4
Pneumatic connection 1 G1/2
Pneumatic connection 2 G1/2
Werkstoff Ablassschraube High-alloyed stainless steels
Werkstoffnummer Ablassschraube 1.4404/316L
Filter carrier material Cast stainless steel
Werkstoffnummer Filtertr?ger 1.4409/CF3M(316L)
Material information LABS containing materials includedRoHs compliant
Mounting bracket material High-alloyed stainless steels
Seals material CRNBRVMQ
Spring material High-alloyed stainless steels
Filter material High-alloyed stainless steels
Werkstoffnummer Filter 1.4404/316L
Housing material Cast stainless steel
Material number housing 1.4409/CF3M(316L)
Regulation screw material High-alloyed stainless steels
Clamps material Cast stainless steel
Werkstoffnummer Schale 1.4409/CF3M (316L)
