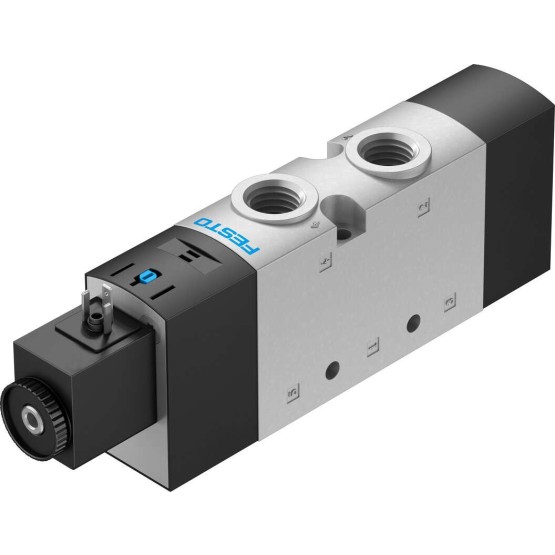

VUVS-LT30-M52-MD-G38-F8-1C1

$133.48

Solenoid Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VUVS-LT30-M52-MD-G38-F8-1C1

FESTO Order Number:8036688

SKU: VUVS-LT30-M52-MD-G38-F8-1C1 Category: Tag:

Description

Valve function 5/2 monostable
Actuation type Electrical
Valve size [mm] 31,0
Normal nominal flow [l/min] 1.800
Operating pressure [bar] 2.5 to 10
Construction set up Plate seat
Reset mode Mechanical spring
Permission c UL us – Recognized (OL)
Nominal width [mm] 8,1
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Hand assist actuation Ratchetingtentative
Control type pilot operated
Control air supply Internal
Flow direction Not reversible
??berdeckung negative ??berdeckung
b-value 0.3
C-value [l/sbar] 9,90
Shifting time off [ms] 26
Shifting time on [ms] 17
Max. positive test impulse at 0 signal [??s] 2.000
Max. negative test impulse for 1 signal [??s] 3.600
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 2 – moderate corrosion stress
Medium temperature [??C] -10 to 60
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [??C] -10 to 60
Product weight [g] 486
Fastening type With throughway boresSelectively:on terminal strip
Breathing opening connection Not recorded
Exhaust control connection 84 M5
Pneumatic connection 1 G3/8
Pneumatic connection 2 G3/8
Pneumatic connection 3 G3/8
Pneumatic connection 4 G3/8
Pneumatic connection 5 G3/8
Material information RoHs compliant
Seals material HNBRNBRTPE-U(PU)
Housing material Die cast aluminium, painted
Piston pusher material POM
Screws material Zinc-plated steel
Protection category IP65With Socketacc. to IEC 60529
Power-on time 100 %
Coil characteristic value 24 V DC: 3,3 W
Permitted voltage oscillations ?I 10 %
Electrical connection Wiring diagram Form C acc. to EN 175301-803
