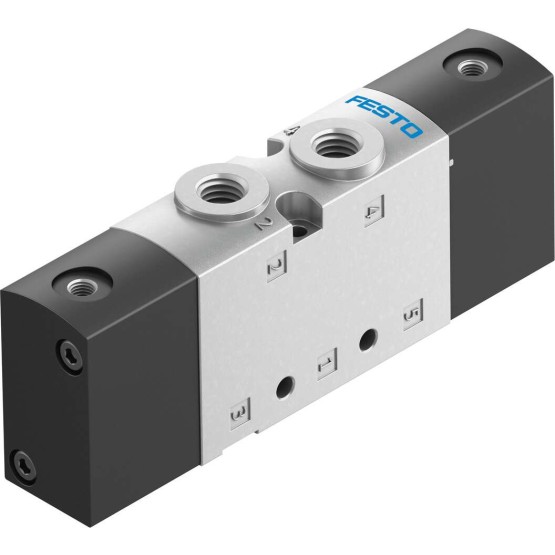

Description
Valve function 2×3/2 open monostable
Actuation type Electrical
Valve size [mm] 31,0
Normal nominal flow [l/min] 1.600
Operating pressure [bar] 2.5 to 10
Construction set up Plate seat
Reset mode Mechanical spring
Permission c UL us – Recognized (OL)
Nominal width [mm] 7,8
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Hand assist actuation Ratchetingtentative
Control type pilot operated
Control air supply Internal
Flow direction Not reversible
??berdeckung negative ??berdeckung
b-value 0.3
C-value [l/sbar] 6,70
Shifting time off [ms] 35
Shifting time on [ms] 14
Max. positive test impulse at 0 signal [??s] 2.000
Max. negative test impulse for 1 signal [??s] 3.600
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 2 – moderate corrosion stress
Medium temperature [??C] -10 to 60
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [??C] -10 to 60
Product weight [g] 442
Fastening type With throughway boresSelectively:on terminal strip
Breathing opening connection Not recorded
Exhaust control connection 84 M5
Pneumatic connection 1 G3/8
Pneumatic connection 2 G3/8
Pneumatic connection 3 G3/8
Pneumatic connection 4 G3/8
Pneumatic connection 5 G3/8
Material information RoHs compliant
Seals material HNBRNBRTPE-U(PU)
Housing material Die cast aluminium, painted
Piston pusher material Aluminium wrought alloy
Screws material Zinc-plated steel
Exhaust control connection 82 M5
Coil characteristic value See solenoid coil, order separately
