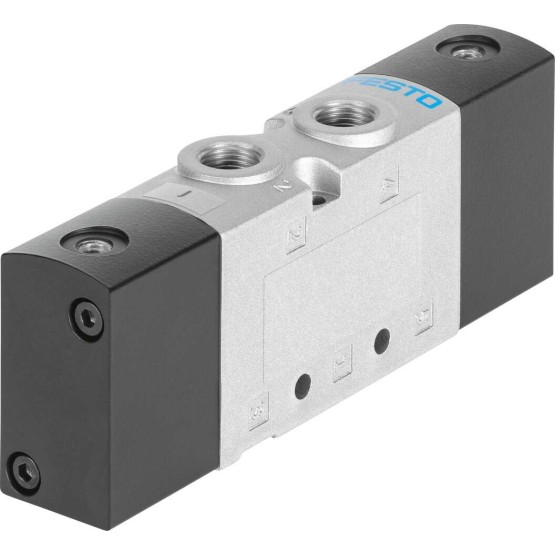

VUWS-LT20-B52-G18

VUWS-LT20-B52-G18

$76.01

Pneumatic Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VUWS-LT20-B52-G18

FESTO Order Number:577528

SKU: VUWS-LT20-B52-G18 Category: Tag:

Description

Valve function 5/2 bistable
Actuation type pneumatic
Valve size [mm] 21,0
Normal nominal flow [l/min] 500
Operating pressure [bar] 1.5 to 10
Construction set up Plate seat
Permission c UL us – Recognized (OL)
Nominal width [mm] 5,0
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Hand assist actuation none
Control type Direct
Control air supply Internal
Flow direction Not reversible
??berdeckung negative ??berdeckung
Control pressure [bar] 1.5 to 10
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 2 – moderate corrosion stress
Medium temperature [??C] -10 to 60
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [??C] -10 to 60
Product weight [g] 192
Fastening type With throughway boresSelectively:on terminal strip
Breathing opening connection Not recorded
Control air 12 connection M5
Pneumatic connection 1 G1/8
Pneumatic connection 2 G1/8
Pneumatic connection 3 G1/8
Material information RoHs compliant
Seals material HNBRNBRTPE-U(PU)
Housing material Aluminium die castingpainted
Screws material Zinc-plated steel
Control air 14 connection M5
Pneumatic connection 4 G1/8
Pneumatic connection 5 G1/8
Shifting time um [ms] 4
