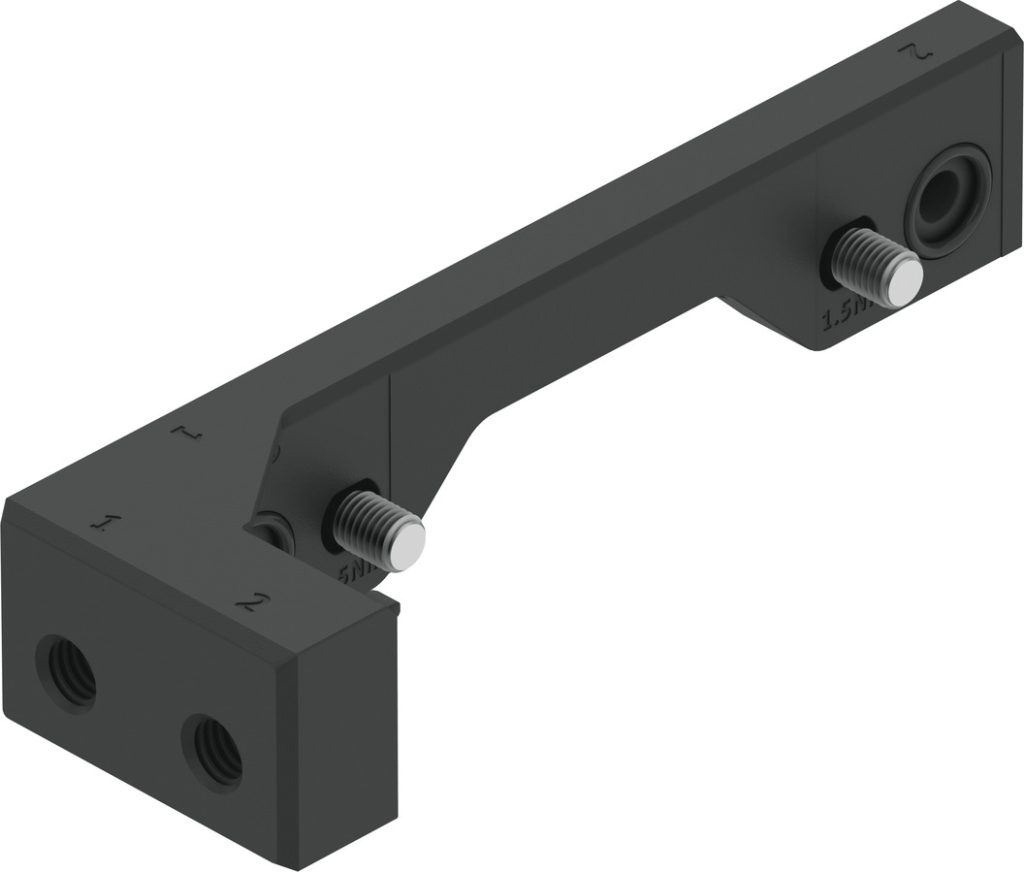

FESTO DADG-AK-G8-10-40 Linking Component Product Introduction

The FESTO DADG-AK-G8-10-40 is a well-designed linking component specifically suited for connection and transmission functions within industrial pneumatic systems. Here is a detailed introduction to this product:

Specifications and Features:

• Body Size: 10
• Stroke: 40 mm
• Operating Pressure: 0.1 MPa to 0.8 MPa / 1 bar to 8 bar / 14.5 psi to 116 psi
• Working Medium: Compressed air, compliant with ISO 8573-1:2010 [7:4:4]
• Corrosion Resistance Class CRC: 1 – Low corrosion resistance
• PWIS Compliance: VDMA24364-B1/B2-L
• Operating Temperature: -10 °C to 60 °C
• Maximum Fastening Torque: 1.5 Nm, Torque Tolerance ±10%
• Maximum Fastening Torque for Interface 1: 0.7 Nm
• Product Weight: 12.1 g
• Pneumatic Interface: M5
• Connection Material: Epoxy resin
• Seal Material: NBR
• Screw Material: Coated steel

Product Characteristics and Advantages:

1. Versatile Design: The DADG-AK-G8-10-40 linking component is suitable for various industrial applications, providing reliable connection and transmission capabilities.
2. Durability and Stability: Constructed from epoxy resin and coated steel, it offers excellent corrosion resistance and durability, suitable for harsh operating environments.
3. Wide Application Range: Operates effectively across a broad temperature range from -10 °C to 60 °C, accommodating diverse industrial environment requirements.
4. Installation and Maintenance: With moderate fastening torque, it is easy to install and maintain, ensuring secure connections.
5. Compliance with Standards: Meets the requirements of ISO 8573-1:2010 [7:4:4] for compressed air, ensuring safe and reliable system operation.

Applications:

The FESTO DADG-AK-G8-10-40 linking component is widely used in automated production lines, industrial machinery, pneumatic tools, and other applications, providing essential connectivity solutions for industrial systems.

The DADG-AK-G8-10-40 linking component from FESTO offers efficient and reliable connectivity solutions with its robust design and stable performance. It ensures smooth system operation and longevity across various industrial applications.
