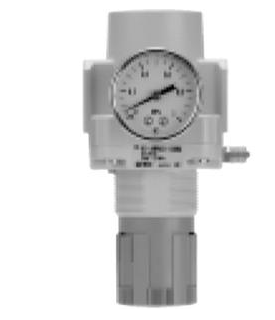

SMC ARP30K-F02 Precision Regulator

The SMC ARP30K-F02 is a precision regulator designed to offer exceptional sensitivity and efficiency in pneumatic systems. It features the following key specifications and features:

• Sensitivity: Set within 0.2% of full scale (F.S.).
• Energy Saving: Reduces air consumption by 80% compared to previous models.
• Repeatability: Maintains accuracy within ±1% F.S. or ±3 kPa.
• Check Valve Functionality: Equipped with check valve functionality (ARP20K·30K·40K), allowing installation between solenoid valves and cylinders.

Specifications:

• Valve Body Size: 30
• Check Valve Function: K (with check valve)
• Thread Type: F (G thread)
• Port Size: 02 (1/4 inch)
• Options:
  • Option a: None
  • Option b: No pressure gauge, no adjusting nut
• Standard a: –
  • Pressure Setting Range: 0.005 to 0.4 MPa
• Standard b: –
  • Flow Direction: Left to Right, with drain valve; pressure unit on the product label and cup body notes: MPa

Other Features:

• Type: Single valve
• Series: ARP
• Pressure Gauge Connection Port: 1/8
• Fluid: Air
• Operating and Ambient Temperature: -5 to 60 ℃
• Pressure Resistance: 1.2 MPa (guaranteed)
• Maximum Operating Pressure: 0.7 MPa
• Repeatability: Within ±1% F.S. or ±3 kPa

The SMC ARP30K-F02 precision regulator is ideal for applications requiring precise pressure control and minimal air consumption, ensuring efficient operation in various pneumatic environments.
