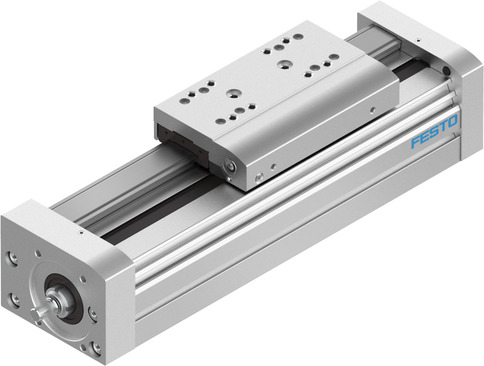

EGC-80-100-BS-10P-KF-0H-ML-GK FESTO Ball Screw Linear Actuator Introduction
2024-07-11FESTO EGC-80-100-BS-10P-KF-0H-ML-GK is a high-performance ball screw linear actuator designed for precise position control and high-load capacity in industrial automation applications.

Technical Specifications:
- Stroke Length: 100 mm
- Size: 80
- Stroke Reserve: 0 mm
- Screw Diameter: 15 mm
- Lead: 10 mm/r
- Structure: Linear actuator with ball screw
- Motor Type: Stepper motor / Servo motor
- Symbol: 00991211
- Maximum Acceleration: 15 m/s²
- Maximum Speed: 0.5 m/s … 0.75 m/s
- Repeatability: ±0.02 mm
- Continuous Duty Cycle: 100%
- PWIS Compliance: VDMA24364-B2-L
- Protection Rating: IP40
- Operating Temperature: -10 °C … 60 °C
- Area Iy Second Moment of Area: 1320000 mm⁴
- Area Iz Second Moment of Area: 981000 mm⁴
- Maximum Force Fy: 3050 N
- Maximum Force Fz: 3050 N
- Maximum Force for Actuator Fy: 3050 N
- Maximum Force for Actuator Fz: 3050 N
- Fy at 100 km Theoretical Life: 11236 N
- Fz at 100 km Theoretical Life: 11236 N
- Maximum Torque Mx: 36 Nm
- Maximum Torque My: 97 Nm
- Maximum Torque Mz: 97 Nm
- Torque for Actuator Mx: 36 Nm
- Torque for Actuator My: 97 Nm
- Torque for Actuator Mz: 97 Nm
- Mx at 100 km Theoretical Life: 133 Nm
- My at 100 km Theoretical Life: 357 Nm
- Mz at 100 km Theoretical Life: 357 Nm
- Maximum Radial Force on Drive Shaft: 250 N
- Maximum Feed Force Fx: 650 N
- Moment of Inertia It: 255000 mm⁴
- Inertial Momentum per Meter of Stroke JH: 0.346 kgcm²
- Feed Constant: 10 mm/r
- Reference Service Life: 5000 km
- End Cap Material: Refined aluminum alloy, anodized
- Drive Housing Material: Refined aluminum alloy, anodized
- Profile Material: Refined aluminum alloy, anodized
- Material Description: RoHS compliant
- Drive Cover Material: Refined aluminum alloy, anodized
- Guiding Slider Material: Steel
- Guide Rail Material: Steel
- Slider Material: Refined aluminum alloy, anodized
- Threaded Nut Material: Steel
- Screw Material: Steel
Applications:
- Industrial Automation: Used for precise position and attitude control in automation equipment.
- Machine Tools: Applied in machining processes requiring high precision positioning.
- Assembly Lines: Utilized for automated assembly and positioning tasks.
FESTO EGC-80-100-BS-10P-KF-0H-ML-GK ball screw linear actuator offers stable performance, precise position control, and excellent load-bearing capabilities for a variety of industrial automation and machining applications. It performs exceptionally well in high-speed operations and long-term stable working environments.
