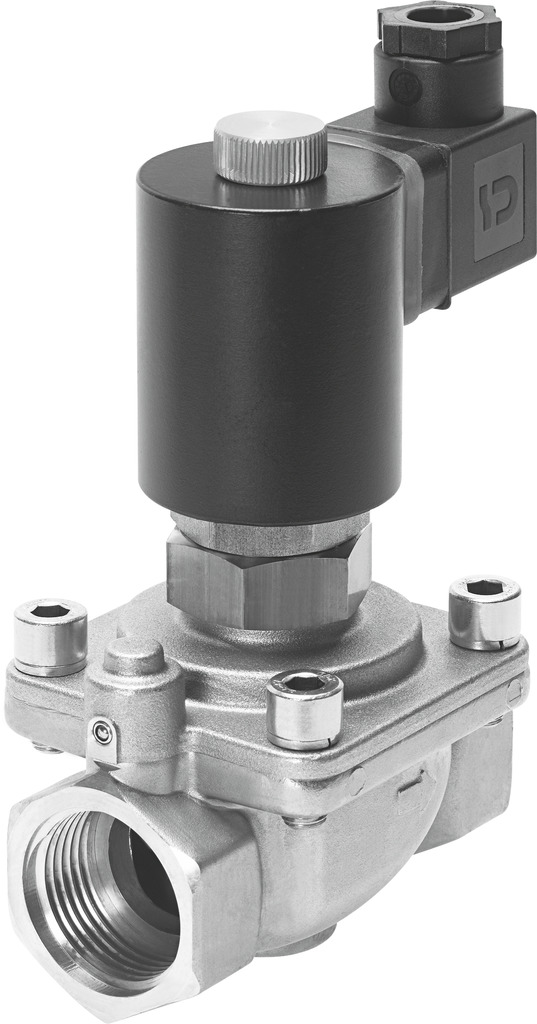

Introducing VZWF-L-M22C-N2-500-3AP4-6-R FESTO　Solenoid Valve

Festo introduces the VZWF-L-M22C-N2-500-3AP4-6-R solenoid valve, designed for robust performance in various industrial applications. This valve combines advanced features with durable construction to ensure reliable operation in demanding environments.

Key Features:

• Valve Type: Pilot-operated membrane valve
• Operation: Directly controlled by electrical signals
• Sealing Principle: Soft sealing for enhanced reliability
• Installation Position: Vertical mounting
• Mounting Type: Pipe installation
• Process Valve Connection: 2 NPT
• Electrical Interface: Type A, conforming to EN 175301-803 standard
• Nominal Diameter: 50 mm
• Valve Function: 2/2-way, normally closed, single stable state
• Flow Direction: Non-reversible
• Media Compatibility: Suitable for compressed air (ISO 8573-1:2010 [7:-:-]), inert gases, mineral oils, water, and other neutral fluids
• Nominal Pressure: PN 40
• Coil Characteristics (230 V AC): Starting power 30.0 Va, holding power 30.0 VA; allows voltage fluctuation of +/- 10%

Technical Specifications:

• Media Pressure Range: 0 Mpa to 0.6 Mpa (0 bar to 6 bar, 0 psi to 87 psi)
• Maximum Viscosity: 22 mm²/s
• Operating Temperature: -10°C to 80°C (ambient), -10°C to 35°C (media)
• Flow Rate (Kv): 28 m³/h, 29900 l/min
• Opening Time: 1220 ms
• Closing Time: 2140 ms
• Material Composition: Housing made of cast stainless steel (1.4581), seals made of NBR, screws made of high-alloy stainless steel (1.4301)
• Weight: 6500 g
• Compliance: RoHS, CE marking, IP65 protection rating, VDMA24364 Category III corrosion resistance

Additional Features:

• Leakage Rate: Conforms to EN 12266-1 standards
• Paint Wetting Impairment Substances (PWIS) Compliance: Yes
• Certifications: Complies with EU Pressure Equipment Directive, EU Low Voltage Directive, UK Pressure Equipment Regulations, and UK Electrical Equipment Regulations

Application Areas: The VZWF-L-M22C-N2-500-3AP4-6-R solenoid valve is ideal for applications requiring precise control of fluid flow in industrial processes. Its robust construction and reliable performance make it suitable for use in various sectors including manufacturing, automation, and more．
