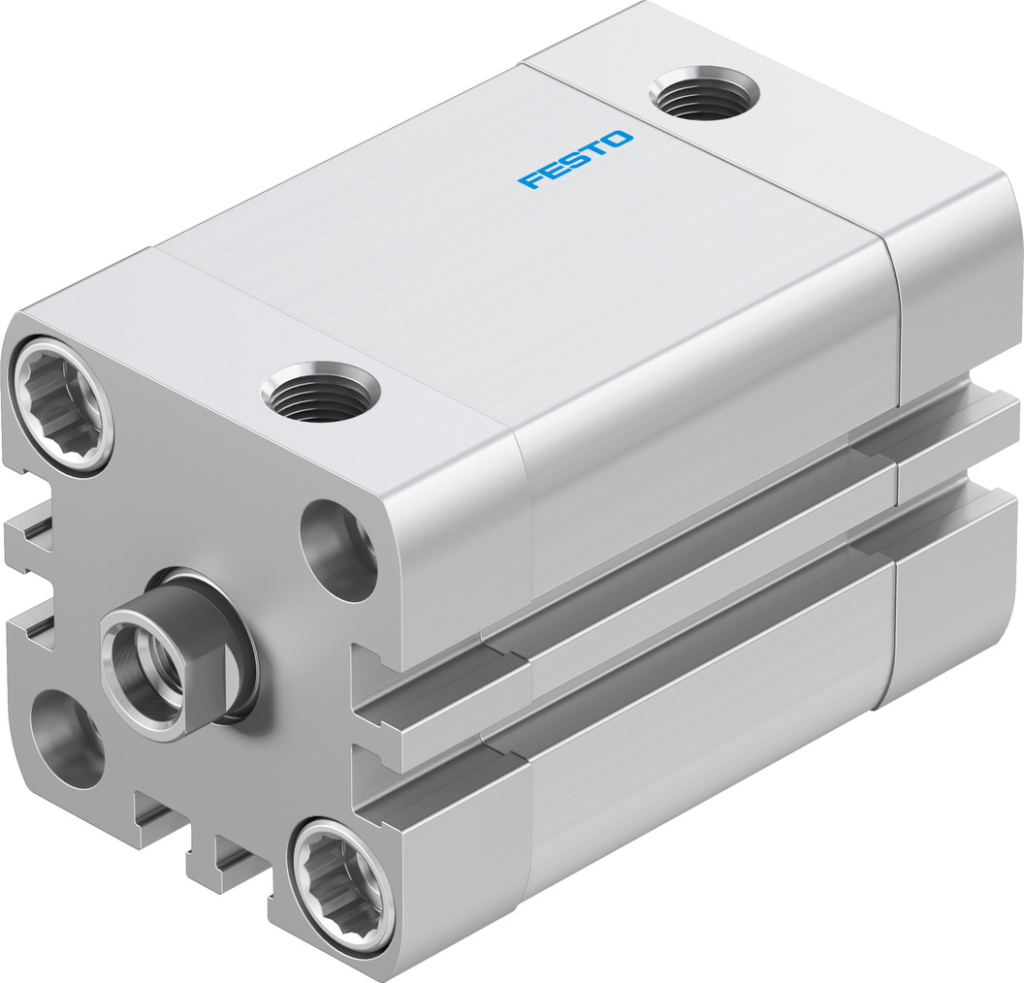

Detailed Introduction of ADN-32-30-I-P-A FESTO Compact Cylinder

The FESTO ADN-32-30-I-P-A is a high-performance compact cylinder designed for industrial applications that require small size yet powerful thrust output.

Key Features:

1. Stroke: 30 mm, suitable for short stroke applications.
2. Piston Diameter: 32 mm, providing stable thrust and high efficiency.
3. Piston Rod Thread: M8, ensuring reliable connections.
4. Cushioning: Equipped with elastic cushioning rings/pads at both ends for smooth and safe operation.
5. Mounting Position: Optional mounting positions, compliant with ISO 21287 standard.
6. Piston Rod End: Internal thread, facilitates position detection via proximity switches.
7. Symbol: 00991217, unique identifier for the product.
8. Operating Pressure: 0.06 Mpa to 1 Mpa (0.6 bar to 10 bar), suitable for various pressure environments.
9. Operating Mode: Double-acting, enabling bi-directional push/pull actions.
10. Operating Medium: Compressed air, compliant with ISO 8573-1:2010 [7:4:4] standard.
11. PWIS (Paint Wetted Impulse Substance) Compliance: Conforms to VDMA24364-B1/B2-L standards for use in special environments.
12. Cleanroom Classification: Level 6, complies with ISO 14644-1 standard, suitable for applications requiring high cleanliness.
13. Operating Temperature: -20 °C to 80 °C, suitable for a wide range of operating temperatures.
14. Impact Energy at End Position: 0.4 J, ensuring reliability under extreme conditions.
15. Moving Mass: 78 g, lightweight design to reduce mechanical load.
16. Product Weight: 328 g, robust and durable construction.
17. Mounting Options: Supports through-hole and internal thread installation methods.
18. Material Description: RoHS compliant, includes steel for ring bolts, anodized aluminum alloy for caps, TPE-U(PUR) for seals, high alloy steel for piston rods, and smooth anodized refined aluminum alloy for cylinder barrels.

Applications:

The FESTO ADN-32-30-I-P-A compact cylinder is widely used in industrial automation, production lines, and mechanical operations, ideal for applications that demand compact size with high performance.

The FESTO ADN-32-30-I-P-A compact cylinder offers a reliable and efficient pneumatic actuator solution, characterized by its superior design and versatile applicability. Whether for new engineering projects or system upgrades in manufacturing, this product meets diverse industrial needs.
