Detailed Introduction of VZWP-L-M22C-G12-130-V-3AP4-40 FESTO Solenoid Valve

Product Overview

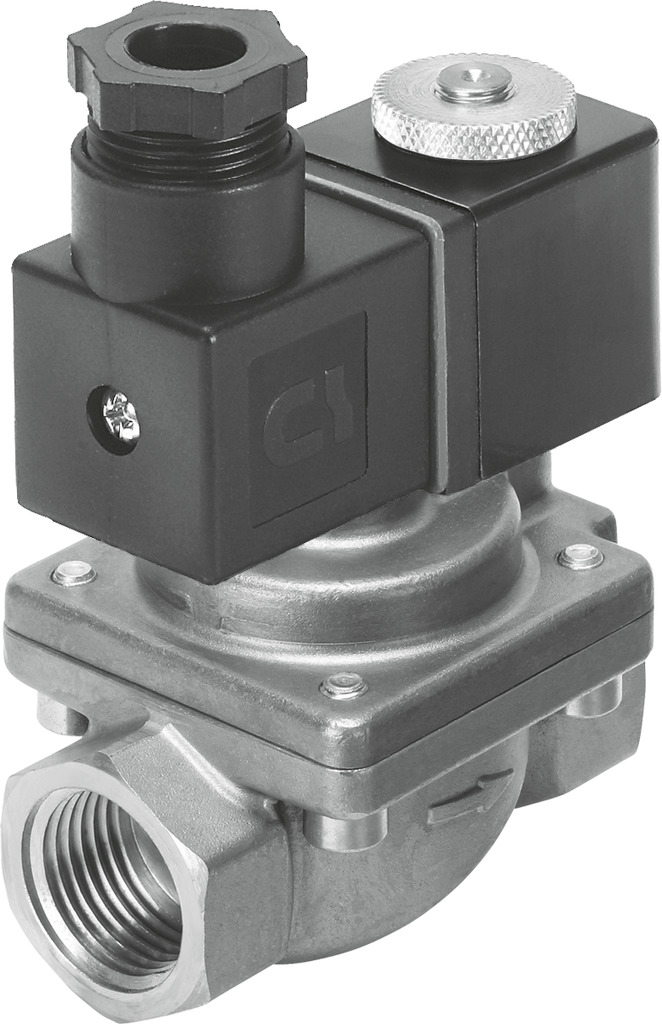

The FESTO VZWP-L-M22C-G12-130-V-3AP4-40 is a high-performance solenoid valve widely used in industrial automation control systems. This valve features a pilot piston to actuate the valve and operates via electronic control. It utilizes a soft-sealing principle to effectively prevent fluid leakage.

Technical Specifications

• Installation Position and Method: Preferred top-coil installation, suitable for pipe installation, facilitating ease of installation and maintenance.
• Process Valve Connection: G1/2 interface standard, ensuring compatibility with various piping systems.
• Electrical Interface: Type A plug complying with EN 175301-803 standard, ensuring stable and secure electrical connections.
• Valve Function: 2/2-way, normally closed, single stable, suitable for applications requiring stable control of fluid flow.
• Medium and Pressure Range: Operates with neutral fluids and inert gases at pressures ranging from 0.05 to 4 MPa (0.5 to 40 bar, 7.25 to 580 psi).
• Environmental Adaptability: Designed to operate stably in environments with temperatures ranging from -10°C to 35°C, meeting industrial environmental demands.

Performance Features

• Fluid Control Precision: Kv value of 2.5 m³/h, standardized rated flow according to DIN 1343, ensuring rapid and reliable fluid control.
• Response Time: Opening time of just 100 milliseconds and closing time of 250 milliseconds, suitable for automation systems requiring quick response.
• Materials and Safety: Constructed with RoHS-compliant cast brass (CW617N) for the housing, high-temperature resistant FPM for seals, and high-alloy stainless steel (1.4301) for screws, ensuring stability and durability in various industrial applications.
• Safety Standards: Offers IP65 level protection against dust and water ingress, ensuring long-term reliable operation.

Applications

The FESTO VZWP-L-M22C-G12-130-V-3AP4-40 solenoid valve is widely applied in industrial automation systems including fluid control, compressed air systems, and chemical process controls. Its stable performance and reliable operation make it a critical component in industrial control systems, enhancing production efficiency and operational safety.

In summary, the FESTO VZWP-L-M22C-G12-130-V-3AP4-40 solenoid valve meets the demands of precision fluid control in industrial applications with its advanced technology and reliable performance characteristics. Whether for stability in control systems or optimization of response speed, this product is indispensable in modern industrial automation processes.
