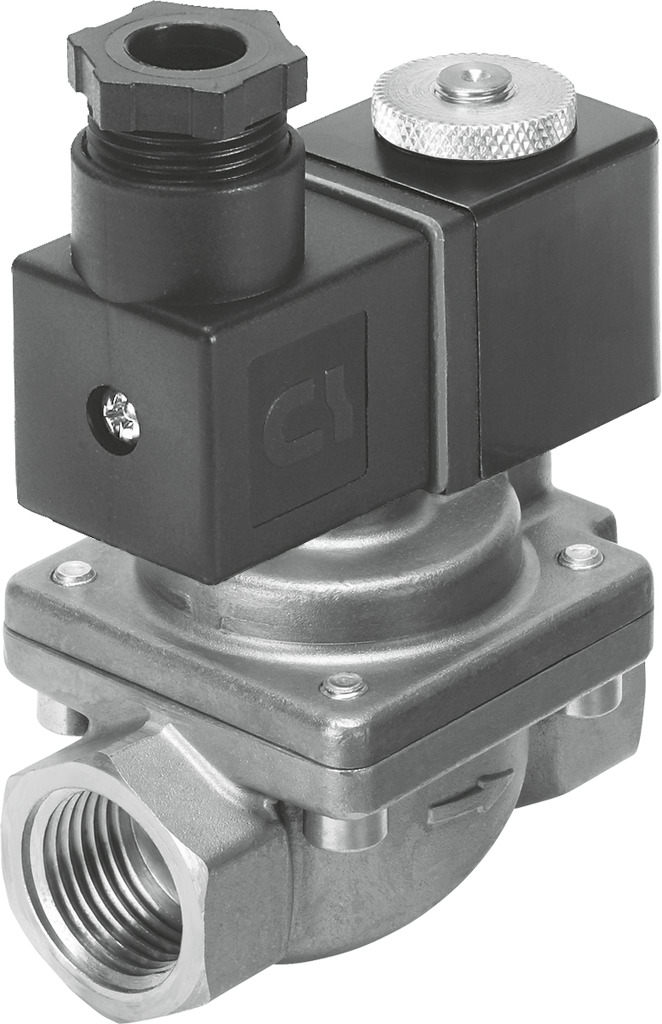

Detailed Introduction to VZWP-L-M22C-G12-130-2AP4-40 FESTO　Solenoid Valve

FESTO VZWP-L-M22C-G12-130-2AP4-40 is a robust solenoid valve designed for fluid control in industrial automation systems. Here are the detailed specifications of this product:

Basic Parameters

• Valve Function: 2/2-way, normally closed, mono-stable.
• Drive Type: Electrically controlled.
• Sealing Principle: Soft seal.
• Mounting Position: Top coil (preferred).
• Mounting Type: Tube installation.
• Process Valve Connection: G1/2.
• Electrical Interface: Type A connector, compliant with EN 175301-803 standard, square.
• Nominal Diameter: 13 mm.
• Manual Control Device: None.
• Flow Direction: Non-reversible.

Performance

• Medium: Compressed air, compliant with ISO 8573-1:2010 [7:4:4], inert gases, neutral fluids, other media upon request.
• Nominal Pressure PN: 40.
• Pressure Differential: 0.05 MPa, 0.5 bar, 7.25 psi.
• Medium Pressure Range: 0.05 MPa … 4 MPa, 0.5 bar … 40 bar, 7.25 psi … 580 psi.
• Maximum Viscosity: 22 mm²/s.
• Medium Temperature: -10 °C … 80 °C.
• Ambient Temperature: -10 °C … 35 °C.
• Leakage Rate: Conforms to EN 12266-1 Class A.
• Flow Kv: 2.5 m³/h.
• Standard Rated Flow (according to DIN 1343): 2650 l/min.
• Opening Time: 100 ms.
• Closing Time: 250 ms.

Electrical Characteristics

• Coil Characteristics: 110 V AC, 50/60 Hz, starting power 10.5 VA, holding power 8.0 VA.
• Insulation Material Class: H.
• Allowed Voltage Fluctuation: +/- 10%.
• Continuous Duty Cycle: 100%.

Design Features

• Pilot Type: Pilot-operated.
• Symbol: 00992974.

Material Specifications

• RoHS Compliance: Yes.
• PWIS Compliance: VDMA24364 Region III.
• Housing Material: Cast brass, material number CW617N.
• Seal Material: NBR.
• Screw Material: High-alloy stainless steel, material number 1.4301.

Safety and Certification

• CE Certification: Compliant with EU Low Voltage Directive.
• CE Marking: See declaration of conformity.
• Compliance with UK Electrical Equipment Regulations.

Environmental Protection and Durability

• Protection Rating: IP65.
• Corrosion Resistance Level (CRC): 1 – Low corrosion resistance capability.

FESTO VZWP-L-M22C-G12-130-2AP4-40 solenoid valve offers efficient fluid control and reliable performance, making it suitable for various industrial applications including automated production lines, processing equipment, and hydraulic/pneumatic control systems. Its advanced design and high-quality materials ensure long-term stable operation and excellent safety performance, making it an ideal choice for modern industrial automation solutions.
