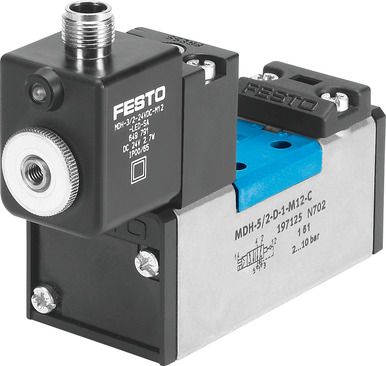

Introduction to FESTO MDH-5/2-D-1-S-FR-M12D-C Solenoid Valve

The FESTO MDH-5/2-D-1-S-FR-M12D-C is a robust and versatile solenoid valve designed for precise control in industrial pneumatic applications. Here’s a detailed overview of its specifications and features:

Design and Functionality

• Valve Type: 5/2-way, single solenoid.
• Actuation: Electrical control.
• Width: 42 mm.
• Standard Rated Flow (DIN 1343): 1200 l/min.
• Process Valve Connection: Base type 1, complies with ISO 5599-1 standard.
• Thread Size: G1/4.
• Operating Voltage: 24V DC.
• Operating Pressure Range: -0.9 bar … 16 bar.
• Structure: Piston spool valve.
• Reset Type: Spring return.
• Protection Rating: IP65.
• Nominal Diameter: 8 mm.
• Grid Size: 43 mm.
• Exhaust Function: With throttle option.
• Sealing Principle: Soft seal.
• Mounting Position: Optional.
• Compliance Standard: ISO 5599-1.

Performance Specifications

• Pilot Pressure: 3 bar … 10 bar.
• Closing Time: 42 ms.
• Opening Time: 20 ms.
• Duty Cycle: 100%.
• Maximum Positive Test Pulse for 0 Signal: 3800 µs.
• Maximum Negative Test Pulse for 1 Signal: 4900 µs.
• Coil Characteristics (24V DC): 2.7 W.
• Allowed Voltage Fluctuation: +/- 10%.

Media and Environmental Specifications

• Working Medium: Compressed air, complies with ISO 8573-1:2010 [7:4:4].
• Lubrication: Compatible with lubricated air.
• Vibration Resistance: Tested for transport applications, severity level 1, complies with FN 942017-4 and EN 60068-2-6 standards.
• Shock Resistance: Impact tested, severity level 2, complies with FN 942017-5 and EN 60068-2-27 standards.
• PWIS Compliance: VDMA24364-B1/B2-L.
• Media Temperature: -10 °C … 50 °C.
• Ambient Temperature: -10 °C … 50 °C.
• Sound Pressure Level: 85 dB(A).

Material and Construction

• Seal Materials: HNBR, NBR.
• Housing Material: Die-cast aluminum.

Electrical Interface and Installation

• Electrical Interface: M12x1.
• Installation Method: Base mounted with through holes.
• Pilot Air Ports on Base: Port 12 and Port 14, base type 1.

The FESTO MDH-5/2-D-1-S-FR-M12D-C solenoid valve combines high-performance pneumatic control with robust construction, making it suitable for demanding industrial environments. Its fast response times, high reliability, and compatibility with various media types ensure efficient operation in a wide range of applications.
