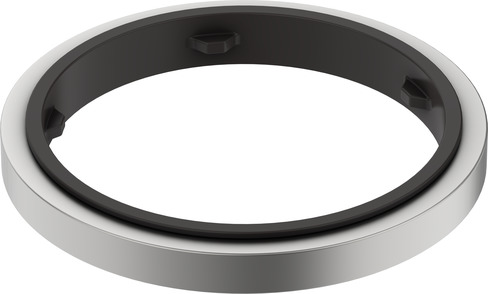

Introducing FESTO OL-3/8-200 Seal Ring

The FESTO OL-3/8-200 seal ring is a specialized component designed for sealing applications in industrial settings, ensuring reliability and performance under varying conditions. This article provides an in-depth overview of its specifications, features, and applications.

Specifications:

• Package Quantity: 200
• Operating Pressure Temperature Range:
  • -0.095 MPa to 3 MPa
  • -0.95 bar to 30 bar
  • -13.775 psi to 435 psi
• Corrosion Resistance Class (CRC): CRC 2 – Medium corrosion resistance
• PWIS Compliance: VDMA24364-B2-L
• Suitability for Lithium-ion Battery Production:
  • Does not use metals with copper, zinc, or nickel content exceeding 1%, except for nickel in steel, chemical nickel-plated surfaces, printed circuit boards, cables, connectors, and coils.
• Cleanroom Classification: Components installed statically cannot be meaningfully evaluated according to ISO 14644-1.
• Operating Temperature Range: -40 °C to 100 °C
• Manual Tightening at Room Temperature: Yes
• Nominal Torque: 13 Nm
• Nominal Fastening Torque Tolerance: ± 20%
• Pneumatic Interface: G3/8
• Material Compliance: RoHS compliant
• Block Material: Aluminum
• Sealing Material: HNBR

Features and Benefits:

The OL-3/8-200 seal ring from FESTO excels in sealing applications where robust performance and reliability are essential. It operates within a wide pressure and temperature range, making it suitable for diverse industrial environments. The use of HNBR sealing material ensures resistance to various fluids and chemicals, enhancing longevity and sealing effectiveness.

Applications:

This seal ring is ideal for use in industries requiring secure sealing under challenging conditions, such as automotive manufacturing, chemical processing, and semiconductor production. Its RoHS compliance and medium corrosion resistance (CRC 2) make it suitable for applications demanding environmental compliance and durability.

FESTO’s OL-3/8-200 seal ring combines precision engineering with durable materials to meet the stringent requirements of industrial sealing applications. Whether in high-pressure pneumatic systems or critical fluid handling applications, its reliability and performance ensure consistent operation and sealing integrity.
