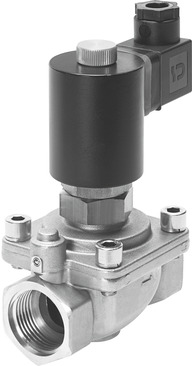

Introducing VZWF-L-M22C-N114-400-V-1P4-10-R1 FESTO Solenoid Valve

2024-07-16 By xyj2024 0

The FESTO VZWF-L-M22C-N114-400-V-1P4-10-R1 solenoid valve is a robust component designed for precise control and reliability in industrial fluid handling applications. This article provides a comprehensive overview of its specifications, features, and applications.

Specifications:

  • Valve Type: Diaphragm valve
  • Operation: Force pilot operated
  • Drive: Electric control
  • Sealing Principle: Soft sealing
  • Installation Position: Vertical mounting for solenoid valve
  • Mounting Type: Pipe installation
  • Process Valve Connection: 1 1/4 NPT
  • Electrical Interface: Type A, conforming to EN 175301-803 standard
  • Nominal Diameter: 40 mm
  • Valve Function: 2/2-way, normally closed, mono-stable
  • Manual Override: None
  • Flow Direction: Non-reversible
  • Media Compatibility:
    • Compressed air, compliant with ISO 8573-1:2010 [7:-:-]
    • Inert gases
    • Mineral oils
    • Water
    • Neutral fluids and other media as required
  • Nominal Pressure PN: 40
  • Differential Pressure: 0 MPa, 0 bar, 0 psi
  • Coil Characteristics:
    • 24 V DC, 30.0 W
    • Allowable voltage fluctuation: +/- 10%
  • Symbol: 00992976
  • Media Pressure Range: 0 MPa to 1 MPa, 0 bar to 10 bar, 0 psi to 145 psi
  • Maximum Viscosity: 22 mm²/s
  • Media Temperature: -10 °C to 80 °C
  • Ambient Temperature: -10 °C to 35 °C
  • Leakage Rate: Conforms to EN 12266-1, Grade A
  • Flow Kv: 20 m³/h
  • Standard Rated Flow (DIN 1343): 21370 l/min
  • Opening Time: 620 ms
  • Closing Time: 1140 ms
  • Material Compliance: RoHS compliant
  • PWIS Compliance: VDMA24364 Zone III
  • Housing Material: Die-cast stainless steel
  • Housing Material Number: 1.4581
  • Seal Material: FPM (Viton)
  • Screw Material: High-alloy stainless steel
  • Screw Material Number: 1.4301
  • Product Weight: 4500 g
  • CE Certification: Complies with EU Pressure Equipment Directive
  • Protection Rating: IP65
  • Corrosion Resistance Class (CRC): CRC 3 – High corrosion resistance

Features and Benefits:

The VZWF-L-M22C-N114-400-V-1P4-10-R1 solenoid valve by FESTO excels in applications requiring robust performance and resistance to harsh industrial environments. Its diaphragm valve design, coupled with soft sealing, ensures reliable operation and minimal leakage. The valve’s stainless steel housing and high-alloy screw materials enhance durability and corrosion resistance, suitable for extended service life in demanding conditions. With CE certification and IP65 protection, it meets stringent regulatory and environmental standards.

Applications:

This solenoid valve is ideal for various industrial sectors, including chemical processing, water treatment, and pneumatic systems. It is designed to handle a wide range of media types and temperatures, making it versatile for both new installations and system upgrades where reliability and longevity are paramount.

The FESTO VZWF-L-M22C-N114-400-V-1P4-10-R1 solenoid valve combines advanced engineering with durable materials to deliver superior performance in fluid control applications. Whether used in controlled environments or exposed to challenging conditions, its robust design ensures consistent and efficient operation, contributing to enhanced productivity and operational reliability.
