SRBG-C1-N-1-P-M12 FESTO : Precision Control Solution with Advanced Inductive Sensor Box

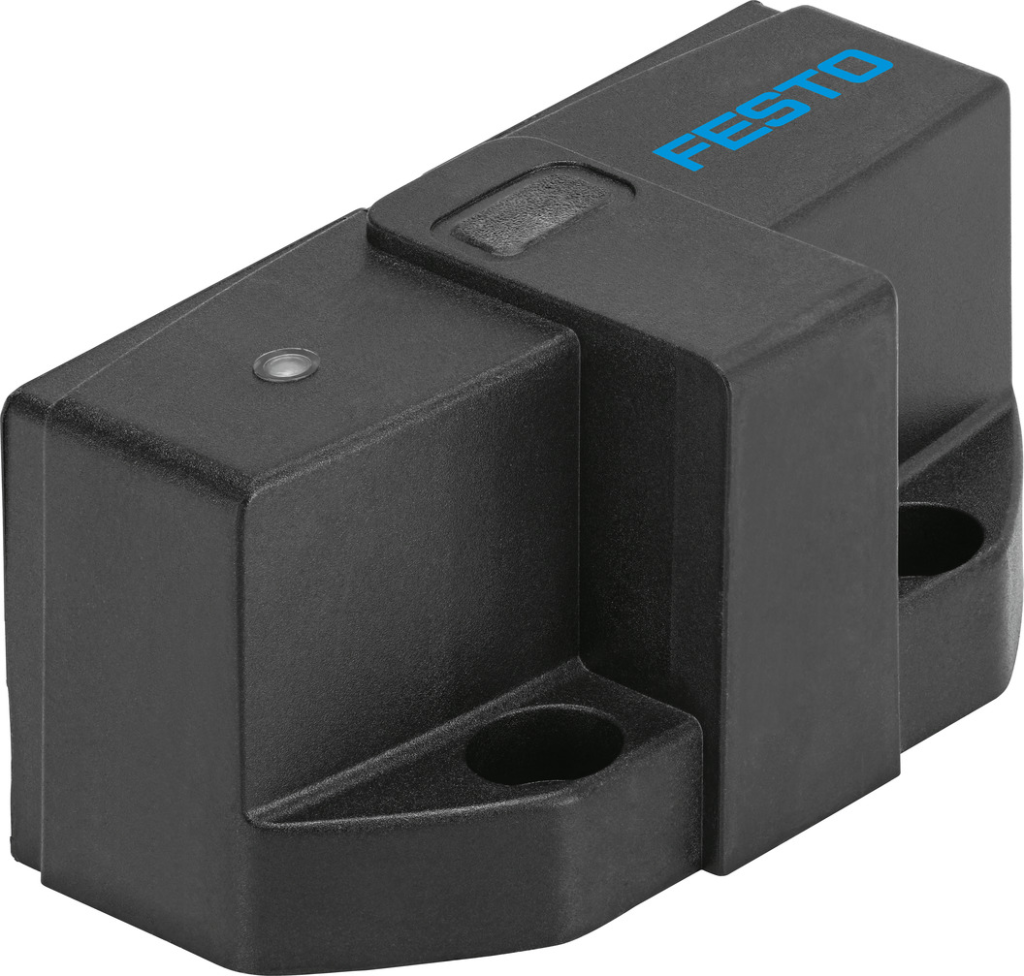

2024-07-17The FESTO SRBG-C1-N-1-P-M12 sensor box is an advanced sensor device designed for industrial automation applications, based on the principle of inductive measurement. It combines reliable performance with high engineering standards to provide precise control solutions for modern industrial environments.

Design and Certification:
- Design Type: Angle-type, compliant with EN 60947-5-2 and VDI/VDE 3845 standards.
- Certifications: RCM trademark, c UL us (OL), CE certification (see declaration of conformity), compliant with EU Electromagnetic Compatibility Directive and RoHS Directive, CE marking (see declaration of conformity), compliant with UK EMC Directive and RoHS Directive, KC mark, KC-EMV.
Technical Specifications:
- Measurement Principle: Inductive.
- Operating Temperature Range: -25 °C to 70 °C.
- Switching Output: PNP, normally open contact.
- Maximum Switching Frequency: 500 Hz.
- Maximum Output Current DC: 100 mA.
- Voltage Drop: ≤3 V.
- Off-state Current: 0 mA to 0.5 mA.
- Pulse Duty Factor: Rated short-circuit current.
- Operating Voltage Range DC: 10 V to 30 V.
- No-load Supply Current: ≤25 mA.
- Reverse Polarity Protection: Suitable for all electrical connections.
Electrical Interface and Installation:
- Electrical Interface 1: Plug connector type, straight cable exit, circular design, M12x1 interface, A-coded, compliant with EN 61076-2-101 standard, 4 wire cores.
- Mounting Method: Threaded, optional mounting position.
- Product Weight: 70 g.
- Enclosure Material: PBT, screws made of high-alloy stainless steel.
- Status Indication: Ready state indicated by green LED, switch state indicated by yellow LED.
- Protection Rating: IP67, ensuring reliability and durability in harsh environments.
Environmental Adaptability:
- Shock Resistance: Meets shock test severity level 2, compliant with FN 942017-5 and EN 60068-2-27 standards.
- Vibration Resistance: Meets transportation application test severity level 2, compliant with FN 942017-4 and EN 60068-2-6 standards.
- PWIS Compliance: Complies with VDMA24364 Region III standard.
The FESTO SRBG-C1-N-1-P-M12 sensor box’s outstanding performance and reliability make it an essential component in industrial automation systems, suitable for various applications including precision measurement and control tasks in machining, assembly lines, and automated production processes.
