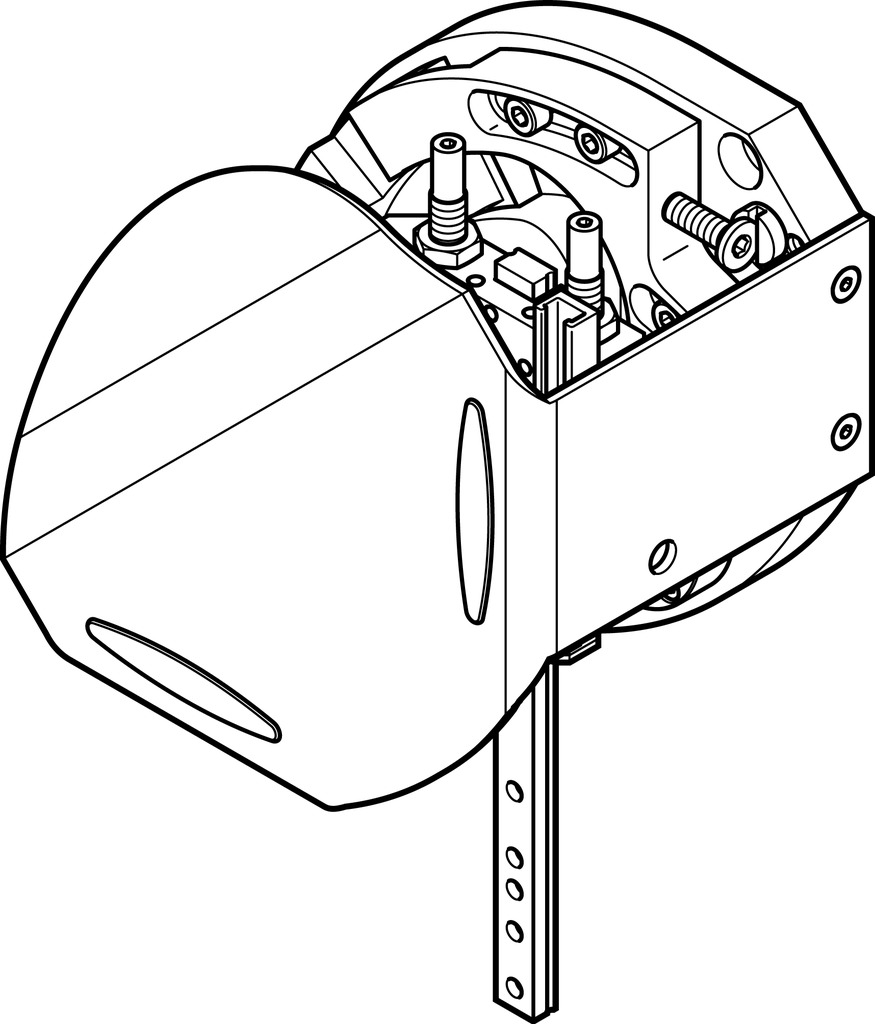

HSW-12-AS-SD FESTOHigh-Speed Gripping Module: Optimized Solution for Efficient Industrial Automation

The FESTO HSW-12-AS-SD high-speed gripping module is an advanced product designed specifically for efficient automation applications. Here is a detailed description of the product:

Stroke 15 mm to 25 mm

Specification 12

Maximum Linear Stroke at 90° Swivel Angle 142/142 mm

Z-Stroke 80 mm to 100 mm

Buffering Noise reduction through buffering

Mounting Position Optional

Structural Features

• Drive Shaft: Linear guide with ball bearings
• Forced pilot work sequence
• Position detection: via proximity switch
• Repeatability of end positions: +/-0.02 mm
• Paint Wetting Impairment Substance (PWIS) compliance: complies with VDMA24364-B2-L

Environmental Conditions

• Operating temperature: 0 °C to 60 °C

Drive Performance

• Maximum drive torque: 1.25 Nm
• Maximum axial force: 18 N

Torque and Load

• Maximum torque Mx: 1.5 Nm
• Maximum torque My: 1.5 Nm
• Maximum torque Mz: 1.5 Nm
• Maximum effective load: 1 kg
• Maximum radial force on drive shaft: 45 N
• Maximum process force in Y direction: 35 N

Product Characteristics

• Weight: 3000 g
• Installation method: via through holes and positioning sleeves
• Stop block material: high-alloy steel
• Cover material: refined aluminum alloy, anodized
• Spring pressure component material: high-alloy steel
• Base plate material: refined aluminum alloy, anodized
• Bracket material: refined aluminum alloy, anodized
• Cross guide rail material: hardened steel
• Swing lever material: surface-hardened steel, polished
• Slotted guide plate material: surface-hardened steel, hardened
• Sensor guide rail material: refined aluminum alloy, anodized
• Grid material: refined aluminum alloy, anodized
• Adjustment screw material: high-alloy steel

The HSW-12-AS-SD high-speed gripping module not only demonstrates FESTO’s advanced capabilities in automation technology but also provides high precision and reliability suitable for rigorous industrial environments. Whether used in assembly lines, material handling, or other automation tasks, this module delivers exceptional performance and enduring operational stability.
