PCRP-64-N14-12-E-R1-M-T18 FESTO Pressure Reducing Filter Regulator: Efficient Filtration, Precise Control
2024-07-19In industrial automation and pneumatic systems, pressure reducing filter regulators are key components for ensuring the quality and stability of compressed air. FESTO, a global leader in pneumatic component manufacturing, has introduced the PCRP-64-N14-12-E-R1-M-T18 pressure reducing filter regulator. This product meets the demanding requirements of harsh industrial environments with its efficient filtration performance and accurate pressure control.

Product Overview

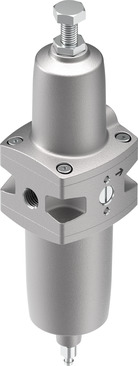

The FESTO PCRP-64-N14-12-E-R1-M-T18 pressure reducing filter regulator is a pneumatic component that integrates filtration, pressure reduction, and safety control. It is compact in design and stable in performance, suitable for a variety of industrial automation and pneumatic control applications.
Core Features
- Efficient Filtration:
- With a filtration rating of 40 µm, it effectively removes solid particles from compressed air.
- Precise Control:
- Equipped with a main pressure compensation function and secondary exhaust, ensuring stable pressure output.
- Safety Assurance:
- Features a control lock and adjustable screw with lock to prevent unauthorized adjustments.
- Easy Maintenance:
- The manual rotation condensate discharge device facilitates quick removal of condensate.
- High Standard Compliance:
- Complies with NACE MR0175/ISO 15156 standards, suitable for special environments.
- Explosion-Proof Certification:
- Suitable for ATEX zones 1, 2, 21, and 22, meeting explosion-proof requirements.
- RoHS Compliant Materials:
- All materials are RoHS compliant, environmentally friendly, and safe.
Technical Specifications
- Model: PCRP-64-N14-12-E-R1-M-T18
- Series: P
- Control Lock: Adjustable screw with lock
- Installation Position: Vertical +/-5°
- Filter Rating: 40 µm
- Condensate Drain Device: Manual rotation
- Standard Compliance: NACE MR0175/ISO 15156 (for body and cover)
- Maximum Condensate Volume: 30 ml
- Controller Function: With main pressure compensation function and secondary exhaust
- Working Pressure Range: 0.1 Mpa … 2 Mpa (1 bar … 20 bar)
- Pressure Adjustment Range: 0.5 bar … 12 bar
- Maximum Pressure Hysteresis: 0.2 bar
- Maximum Standard Flow Rate: 3990 l/min
- Standard Rated Flow Rate: 2845 l/min (according to DIN 1343)
- Working Medium: Compressed air, compliant with ISO 8573-1:2010 [-:4:-], inert gases
- Outlet Air Purity Level: Compressed air, compliant with ISO 8573-1:2010 [7:4:4]
- Medium Temperature: -20 °C … 80 °C
- Ambient Temperature: -20 °C … 80 °C
- Product Weight: 1965 g
Application Scenarios
The FESTO PCRP-64-N14-12-E-R1-M-T18 pressure reducing filter regulator is suitable for the following fields:
- Industrial automation equipment
- Pneumatic control systems
- Mechanical tools
- Medical equipment
- Any situation requiring high-quality compressed air
Its efficient filtration system and precise pressure control capabilities make it excellent in the field of automation.
The FESTO PCRP-64-N14-12-E-R1-M-T18 pressure reducing filter regulator, with its efficient filtration performance, precise pressure control, and safe operation guarantee, is an ideal pneumatic component in the field of industrial automation. Whether in automated equipment or pneumatic control systems, this pressure reducing filter regulator provides stable and reliable performance. Choose FESTO for efficiency and reliability.
