NEBV-S1G44-K-10-N-LE39 FESTO Connection Cable: Exceptional Performance, Safe and Reliable

2024-07-19 By xyj2024 0

In the field of automated control systems, high-quality connection cables are essential for ensuring the stability and reliability of signal transmission. FESTO, a global leader in automation component manufacturing, has introduced the NEBV-S1G44-K-10-N-LE39 connection cable. This product meets the stringent requirements of industrial applications with its outstanding electrical performance and durability.

Product Overview

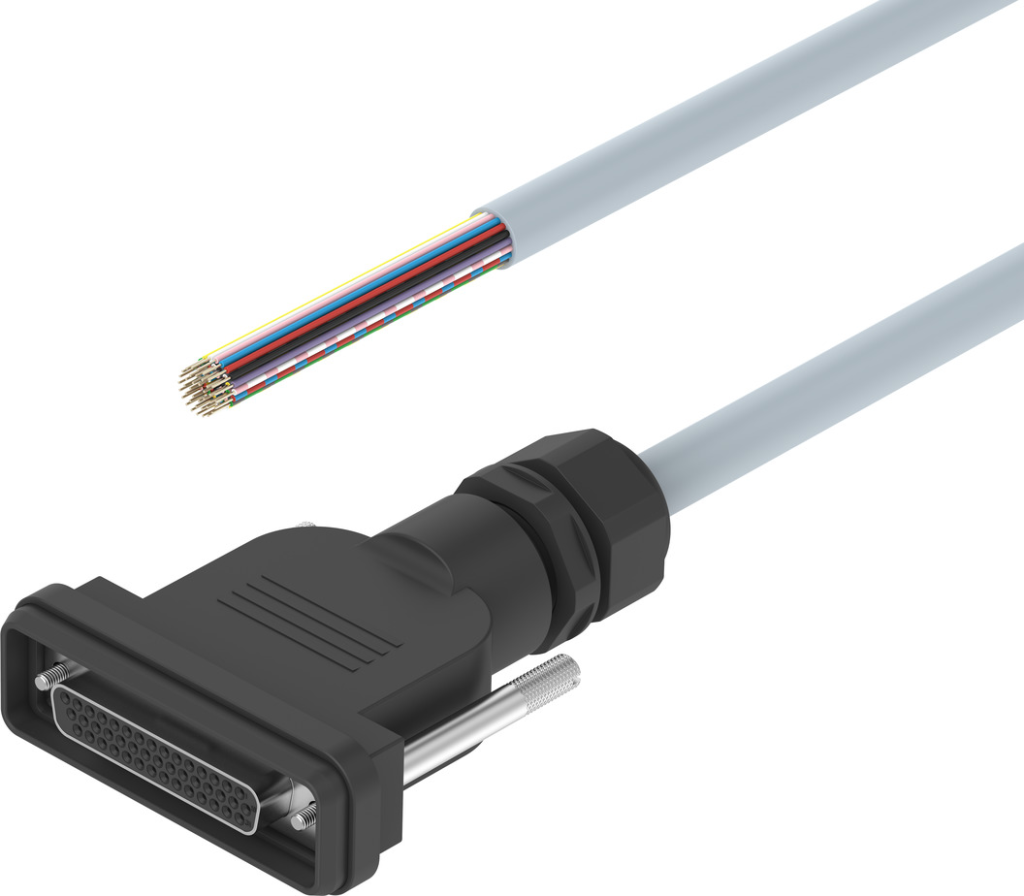

The FESTO NEBV-S1G44-K-10-N-LE39 is a connection cable specifically designed for industrial automation and control applications. It is manufactured to high standards to ensure stability and durability in various working environments.

Core Features

  • Diverse Installation Methods: Supports 4-40UNC installation, offering flexible mounting options.
  • Lightweight Design: The product weighs only 1432 grams, facilitating easy installation and operation.
  • Professional Electrical Interface: A 44-pin Sub-D connector ensures broad compatibility and stable connections.
  • Wide Operating Voltage Range: Suitable for applications with a direct current voltage not exceeding 30V.
  • High Rated Current: Can withstand a rated current of 0.86A at 40°C.
  • Long Cable Length: Comes with a 10-meter cable to meet the needs of long-distance transmission.
  • Cable Characteristics: Suitable for static applications, with excellent resistance to bending and wear.
  • High Protection Rating: IP65 and IP67 protection ratings ensure reliability in harsh environments.

Technical Specifications

  • Installation Position: Optional
  • Product Weight: 1432 grams
  • Electrical Interface: 44-pin Sub-D
  • Operating Voltage Range: DC, ≤30V
  • Rated Current: 0.86A at 40°C
  • Cable Length: 10 meters
  • Cable Features: For static applications, minimum bending radius 95mm, diameter 9.6mm, tolerance ±0.5mm
  • Cable Structure: 40 x 0.14 mm²
  • Protection Rating: IP65 (assembled state) and IP67
  • Ambient Temperature: -5°C to 60°C
  • CE Certification: Compliant with EU RoHS Directive
  • Materials: RoHS compliant, corrosion resistance level CRC 2

Application Scenarios

  • Industrial Automation Equipment: Provides stable signal transmission for automated control systems.
  • Control Panel Connections: Establishes reliable connections between control rooms and equipment.
  • Robotics Technology: Offers precise signal transmission in robotic control systems.

The FESTO NEBV-S1G44-K-10-N-LE39 connection cable is an ideal connection solution in the field of industrial automation with its exceptional performance and safety standards. Whether in automated equipment or control panel connections, this cable provides stable and reliable connections. Choose FESTO for quality and trust.
