ESV-40-BS FESTO Vacuum Cup: The Ideal Choice for High Efficiency and Adaptability

2024-07-22 By xyj2024 0

In the fields of automated production and material handling, vacuum cups serve as an efficient gripping tool, and their performance is directly related to production efficiency and job quality. The FESTO ESV-40-BS vacuum cup, with its excellent compensating ability and adaptability, meets the diverse needs of industrial applications.

Product Overview

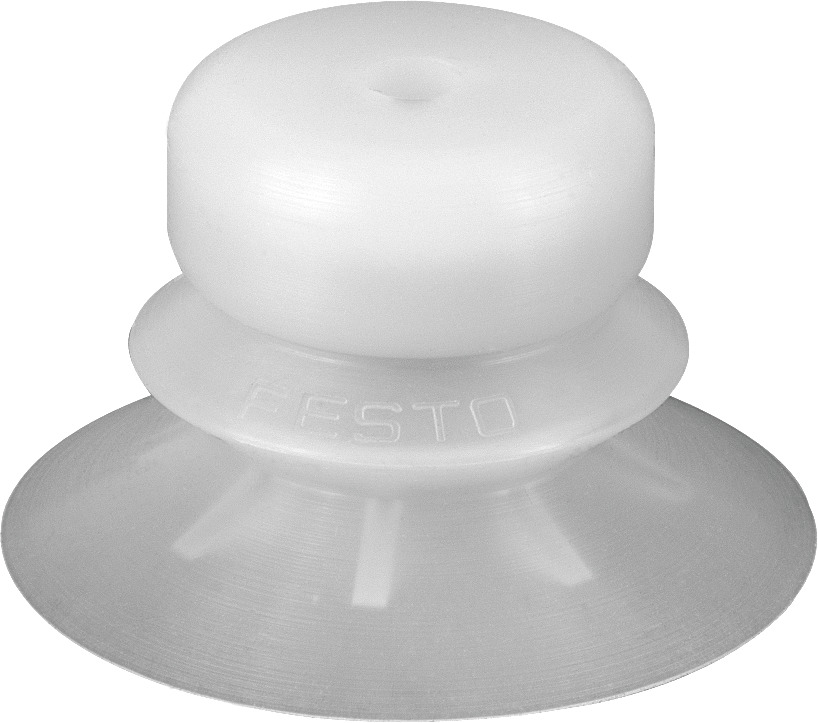

The FESTO ESV-40-BS is a vacuum cup without a connector, featuring a height compensator suitable for handling workpieces of varying shapes and sizes. Its compact design and stable performance make it an ideal pneumatic component in automated production lines.

Technical Specifications and Features

  • Height Compensator Size: 9.5 mm, effectively dealing with workpieces of different thicknesses.
  • Minimum Workpiece Radius: 90 mm, ensuring stable grasping of small workpieces.
  • Vacuum Cup Diameter: 40 mm, providing ample adsorption area.
  • Vacuum Cup Volume: 11.699 cm³, ensuring sufficient air capacity for stable adsorption.
  • Interface Position: Top, facilitating easy installation and connection.
  • Mounting Position: Optional, adapting to various installation requirements.
  • Symbol: 00991485, the unique identifier of the product.
  • Vacuum Cup Shape: Corrugated pipe with 1.5 pleats, increasing adsorption stability.
  • Working Pressure Range: -0.095 Mpa to 0 Mpa, suitable for various working pressure environments.
  • Rated Working Pressure: -0.07 Mpa, ensuring long-term stable operation.
  • Working Medium: Atmospheric air, compliant with ISO 8573-1:2010 standard.
  • Paint Wetness Defect Substance (PWIS) Compliance: Meets VDMA 24364 Zone III standards.
  • Suitable for Use in the Food Industry: Complies with food industry standards, see supplementary material for details.
  • Ambient Temperature Range: -30°C to 180°C, suitable for extreme temperature environments.
  • Holding Force at Rated Working Pressure: 52.3 N, ensuring stable grasping of workpieces.
  • Product Weight: 9.8 g, lightweight design for easy integration.
  • Color: Transparent, facilitating observation of the adsorption state.
  • Shore Hardness: 50 +/- 5, providing good wear resistance and elasticity.
  • Material Description: RoHS compliant, vacuum cup material is VMQ (silicone), ensuring environmental friendliness and durability.

Application Scenarios

The ESV-40-BS vacuum cup is suitable for various industrial automation fields, including automated machinery, handling robots, packaging equipment, etc., especially in situations where special requirements are imposed on the vacuum cup’s compensating ability and adaptability.

Advantages Analysis

  • High Compensating Ability: Adapts to workpieces of different thicknesses and shapes, enhancing job flexibility.
  • Stable Adsorption Performance: Corrugated pipe design and rated holding force ensure stable grasping of workpieces.
  • Strong Environmental Adaptability: A wide range of working temperatures and RoHS compliant materials adapt to various environments.
  • Easy to Install and Maintain: Top interface and optional mounting positions simplify the installation process.

The FESTO ESV-40-BS vacuum cup, with its high efficiency, adaptability, and stable adsorption performance, has become an ideal choice in the field of industrial automation. It not only enhances production efficiency but also ensures the safety and reliability of operations.
