DFSP-40-20-PS-PA FESTO Pneumatic Cylinder: High Efficiency, High Reliability

2024-07-22 By xyj2024 0

As a leader in the field of industrial automation, Festo continuously drives technological progress with its innovative and efficient products. The Festo DFSP-40-20-PS-PA Pneumatic Cylinder is known for its excellent performance and reliability, making it a key component in automation systems.

Product Overview

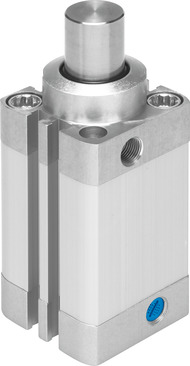

The Festo DFSP-40-20-PS-PA Pneumatic Cylinder is a single-acting cylinder designed for applications that require efficient force transmission and precise control. Its compact size and efficient working mode make it an ideal choice for automation equipment and robotic arms.

Specifications and Features

  • Stroke: 20 mm, providing precise linear motion control.
  • Piston Diameter: 40 mm, ensuring sufficient force output.
  • Buffering: Elastic buffer rings/pads on both ends, reducing impact and noise.
  • Installation Position: Optional, adapting to different installation requirements.
  • Working Mode: Single-acting, simplifying the control system design.
  • Pull: Structural features, easy to achieve automated control.
  • Cylinder Diameter: Piston rod, providing stable guidance.
  • Cylinder Material: Refined aluminum alloy, lightweight and sturdy.
  • Position Detection: Via proximity switch, achieving accurate position feedback.
  • Symbol: 00991850, easy to identify and track.
  • Torque/Guidance Protection: Circular piston rod, enhancing guidance stability.
  • Working Pressure Range: 0.12 Mpa to 1 Mpa (1.2 bar to 10 bar), adapting to a wide range of working pressure requirements.
  • Working Medium: Compressed air, compliant with ISO 8573-1:2010 [7:4:4], ensuring the purity and compatibility of the medium.
  • Corrosion Resistance Class: CRC 2, with medium corrosion resistance, suitable for various chemical environments.
  • Paint Wetting and Defect Substance (PWIS) Compliance: VDMA24364-B1/B2-L, ensuring product appearance and durability.
  • Ambient Temperature: -10 °C to 80 °C, adapting to a wide range of environmental temperature changes.
  • Impact Force: 5540 N, providing strong force output.
  • Allowed Lateral Force: 1108 N during switching operations, ensuring operational stability.
  • Maximum Cycle Frequency: 5 Hz, adapting to high-frequency operation requirements.
  • Installation Method: With through-holes or by internal thread installation, providing flexible installation options.
  • Pneumatic Interface: G1/8, standard interface, convenient for connection.

Material Description

  • RoHS Compliance: Meets environmental protection requirements, ensuring the safety and sustainability of the product.
  • Ring Screw Material: Galvanized steel, providing good corrosion resistance.
  • Cover Material: Refined aluminum alloy, anodized treatment, enhancing wear resistance and aesthetics.
  • Seal Material: TPE-U(PU), providing excellent sealing effects.
  • Piston Rod Material: High-alloy stainless steel, providing high strength and corrosion resistance.
  • Roller Material: Galvanized steel, enhancing wear resistance.
  • Cylinder Material: Refined aluminum alloy, smooth anodized treatment, providing excellent corrosion resistance and aesthetics.

With its excellent performance, strict quality control, and user-friendly design, the Festo DFSP-40-20-PS-PA Pneumatic Cylinder is an ideal choice for the field of industrial automation. Choosing Festo means choosing a reliable partner to provide strong support for your automation projects.
