VABM-L1-18W-G38-10-G FESTO : Versatile Pneumatic Manifold, the Flexible Choice for Industrial Automation

2024-07-23 By xyj2024 0

In complex industrial automation systems, a well-designed pneumatic manifold is key to achieving precise control and simplifying wiring. The FESTO VABM-L1-18W-G38-10-G pneumatic manifold offers a reliable and flexible pneumatic solution with its high-standard design and diverse connection options.

Product Overview

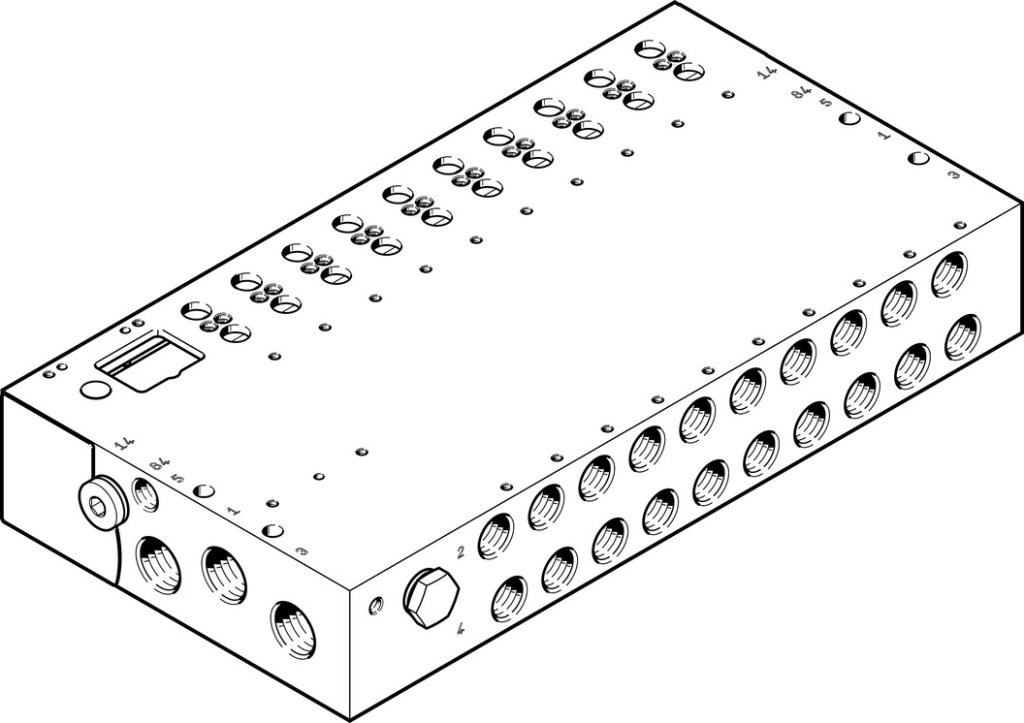

The FESTO VABM-L1-18W-G38-10-G pneumatic manifold is made of refined aluminum alloy, offering excellent corrosion resistance and lightweight features. It has a grid size of 19mm, facilitating an efficient pneumatic layout even in compact spaces.

Technical Features

  • Grid Size: 19mm, providing a compact layout for pneumatic components.
  • Installation Position: Optional, adapting to various installation needs and spatial configurations.
  • Maximum Number of Valve Positions: 10, allowing for expanded and diversified pneumatic control system design.

Performance Specifications

  • Certification: c UL us – Certified (OL), ensuring the product’s safety and reliability.
  • Corrosion Resistance Class (CRC): 2, with moderate corrosion resistance suitable for most industrial environments.
  • Paint Wetness Indicator Substance (PWIS) Compliance: VDMA24364-B1/B2-L, ensuring the product’s corrosion resistance in specific environments.
  • Storage Temperature: -20°C to 60°C, adaptable to a wide range of temperature changes.

Material and Environmental Adaptability

  • Product Weight: 2431g, lightweight design for easy installation and handling.
  • Manifold Material: Refined aluminum alloy, RoHS compliant, environmentally friendly, and durable.

Connection Specifications

  • Pilot Air Port: 12/14, G1/8, providing precise control air source connection.
  • Pilot Exhaust Port: 82/84, G1/8, effectively managing the exhaust of control air source.
  • Air Interface: Including various sizes such as G3/8 and G1/4, suitable for connecting a variety of pneumatic components.

Application Scenarios

The FESTO VABM-L1-18W-G38-10-G pneumatic manifold is suitable for:

  • Automated Machinery: Achieving complex pneumatic control in automated machinery.
  • Industrial Control Cabinets: Serving as a connection and wiring platform for pneumatic components inside control cabinets.
  • Pneumatic Workstations: Providing stable air source and exhaust management for pneumatic tools and equipment.
  • Laboratories and Testing Equipment: Ideal for situations requiring precise control and quick layout.

The FESTO VABM-L1-18W-G38-10-G pneumatic manifold is an ideal choice in the field of industrial automation with its flexible design, efficient connectivity, and excellent corrosion resistance. Whether for standard applications or special custom requirements, this manifold provides a stable and reliable platform for pneumatic control. For more information or to discuss its integration into your system, please visit the FESTO official website or contact their customer service.
