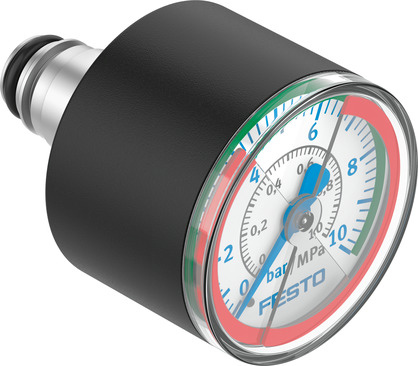

Innovative Masterpiece of Industrial Precision Measurement: An In-Depth Analysis of the FESTO PAGN-26-10-P10-RG Pressure Gauge

2024-07-24 By xyj2024 0

Product Overview

FESTO, a global leader in automation technology, is renowned for its high-quality and innovative products. The PAGN-26-10-P10-RG pressure gauge is a standout among FESTO’s precision measurement devices, designed specifically for accurate pressure measurement in industrial applications.

Technical Specifications

  • Indication Range: 0 bar to 10 bar, also compatible with 0 Mpa to 1 Mpa and 0 psi to 145 psi, ensuring a wide range of applicability.
  • Model Number: 00991463, for quick identification and reference by users.
  • Gauge Nominal Diameter: 26mm, a moderate size that ensures both accuracy and ease of installation and observation.

Structural Features

The PAGN-26-10-P10-RG pressure gauge adopts a Bourdon tube design without a measuring device, which not only looks aesthetically pleasing but also enhances durability. The tube mounting method offers flexible installation options to adapt to various industrial environments.

Working Media

This pressure gauge is suitable for inert gases and neutral fluids, ensuring reliability and safety in a variety of industrial applications.

Working Environment

  • Alternating Load Coefficient: 0.66, indicating its performance stability under varying loads.
  • Measurement Accuracy Class: 4, ensuring high-precision measurement results.
  • Protection Class: IP43, providing a certain level of dust and splash water protection.
  • Storage Temperature: -5°C to 50°C, accommodating a wide range of storage conditions.
  • Medium Temperature: -20°C to 60°C, and Ambient Temperature: -20°C to 60°C, showing its stability under extreme temperature conditions.

Compliance and Materials

  • Paint Wetness Defect Material (PWIS) Compliance: VDMA24364-B1/B2-L, in line with industry standards.
  • Material Description: RoHS compliant, indicating its environmentally friendly characteristics.
  • Interface Position: Centered, on the back, facilitating connection and maintenance.
  • Pneumatic Connection: Plug-in coupler 10mm, providing a convenient connection method.
  • Material in Contact with Medium: Brass, ensuring corrosion resistance and stability.
  • Screw Material: Brass, enhancing the durability of the structure.
  • Housing Material: PA (Polyamide), lightweight and sturdy.
  • Screen Material: PS (Polystyrene), providing clear readings and good chemical resistance.
  • Housing Color: Black, both aesthetically pleasing and practical.

Product Weight

Only 15g, lightweight and portable, facilitating carrying and installation.

Working and Pilot Medium Description

It clearly states that there is no acetylene and no oxygen, ensuring safety during use.

Scale

Dual scale design, MPa (internal) and bar (external), providing users with flexible reading options.

With its precise measurement, robust design, and wide applicability, the FESTO PAGN-26-10-P10-RG pressure gauge has become an ideal choice in the field of industrial automation. Whether in harsh industrial environments or applications requiring high-precision measurement, this pressure gauge can provide reliable performance.
