ZK-PK-3-6/3 FESTO AND-Gate: Precision Control in Pneumatic Systems
2024-07-26Festo, a leading name in automation technology, introduces the ZK-PK-3-6/3 AND-Gate, a pneumatic valve designed to provide precise control in industrial applications. This valve functions as an AND gate, ensuring that multiple conditions must be met for the system to proceed.

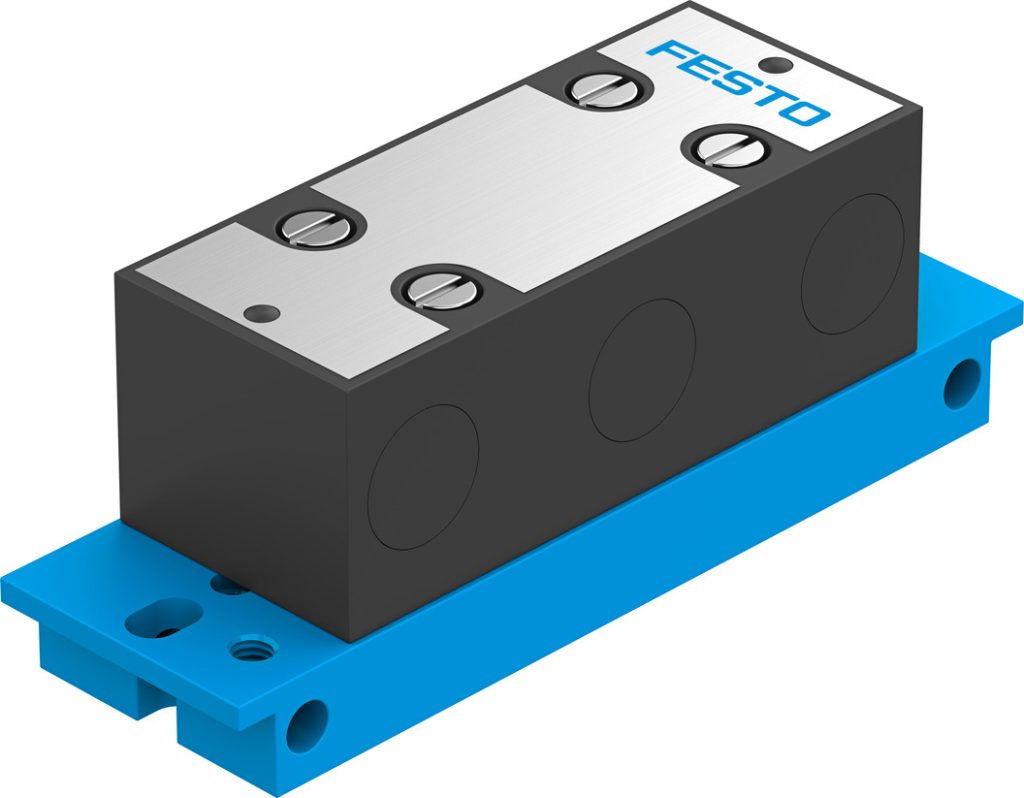

Product Overview
The ZK-PK-3-6/3 AND-Gate from Festo is a pneumatic valve that operates on the principle of an AND function, requiring simultaneous input from two sources to activate the system. This valve is an essential component in complex pneumatic systems where multiple conditions must be met for operation.
Technical Specifications
- Valve Function: “AND” function, ensuring that both inputs must be active for the output to be activated.
- Air Connection, Port 1: PK-3, suitable for standard pneumatic connections.
- Air Connection, Port 2: PK-3, allowing for dual input control.
- Air Connection, Port 3: PK-3, for additional control or output.
- Installation Method: Panel mounting, providing a secure and accessible installation.
- Standard Rated Flow (according to DIN 1343 standardized): 100 l/min, ensuring efficient operation under standard conditions.
- Working Pressure: 1.6 bar to 8 bar, accommodating a wide range of pneumatic system pressures.
- Ambient Temperature Range: -10 °C to 60 °C, suitable for various environmental conditions.
- Housing Material: POM (Polyoxymethylene), known for its strength and durability.
- Working Medium: Compressed air, compliant with ISO 8573-1:2010, ensuring compatibility with standard industrial air quality.
- Explosion Protection: Must adhere to information in the certificate! Suitable for Zone 1, Zone 2, Zone 21, and Zone 22 (ATEX), catering to hazardous environments.
- Nominal Diameter: 2.5 mm, fitting for standard pneumatic tubing.
- Installation Position: Optional, allowing for flexible placement in the system.
- Symbol: 00991462, identifying the specific model.
- Working and Pilot Medium Description: Can operate with lubricated media (must always operate with lubricated media thereafter).
- Paint Wetness Defect Material (PWIS) Compliance: VDMA24364-B1/B2-L, ensuring quality and reliability in manufacturing.
- Medium Temperature: -10 °C to 60 °C, maintaining performance across a wide temperature range.
- Product Weight: 85 g, lightweight for easy handling and installation.
- Seal Material: NBR (Nitrile Butadiene Rubber), providing excellent sealing properties and resistance to wear.
Application Scenarios
The ZK-PK-3-6/3 AND-Gate is ideal for use in automated machinery, industrial control systems, and any application where precise control is required. Its AND function ensures that all necessary conditions are met before the system proceeds, enhancing safety and reliability.
Festo’s ZK-PK-3-6/3 AND-Gate is a testament to the company’s commitment to precision and reliability in pneumatic control systems. With its robust design, wide compatibility, and adherence to stringent safety standards, this valve is a valuable asset for any industrial application.
