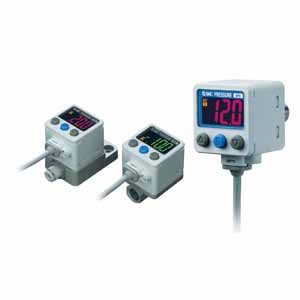

ZSE40A-C6-R-PEK-X501 SMC Digital Pressure Switch: Precise Control, Intelligent Monitoring
2024-07-29In modern industrial applications, accurate pressure control is crucial for ensuring production efficiency and product quality. The ZSE40A-C6-R-PEK-X501 high-precision digital pressure switch introduced by SMC offers a reliable solution for fluid pressure monitoring with its exceptional performance and user-friendly design.

Product Features
- IP65 Protection Rating: Ensures stable operation of the device even in harsh environments, dustproof and waterproof.
- Wide Range of Suitable Fluids: Compatible with air, non-corrosive gases, and non-flammable gases, meeting a variety of industrial needs.
- Easy to Expand: Can be simultaneously copied up to 10 units, facilitating the construction of a large-scale monitoring network.
- Simple Operation: 3-step setup, quickly completes configuration, improving work efficiency.
- Quick-Connect Coupling Design: Equipped with a Φ6 quick-connect coupling, simplifying the installation process and enhancing the convenience of connection.
Technical Specifications
- Rated Pressure Range: 0.0 to -101.3kPa, covering a wide range of pressure monitoring needs.
- Pipe Specification: C6 type, Φ6 quick-connect coupling, suitable for standard pipe diameters, easy for quick installation and replacement.
- Output Specification: R type, NPN open-collector 2 output plus analog voltage/auto-shift switching function, providing flexible signal output options.
- Unit Specification: P type, with unit switching function, initial value PSI, adapting to different pressure unit requirements.
- Option 1: E type, panel mounting, suitable for embedded applications.
- Option 2: K type, provides a calibration certificate, ensuring measurement accuracy.
- Custom Specification: X501 type, wire length of 3m specification, meeting the needs of different installation distances.
Application Areas
The ZSE40A-C6-R-PEK-X501 high-precision digital pressure switch is widely used in automated machinery, pneumatic control systems, medical equipment, laboratory equipment, and other fields, especially in situations where precise control and monitoring of pressure are required.
The SMC ZSE40A-C6-R-PEK-X501 digital pressure switch, with its high-precision measurement, easy operation, and flexible installation options, is an ideal choice for the fields of industrial automation and process control. Choosing SMC means choosing a more accurate and reliable pressure monitoring solution.
