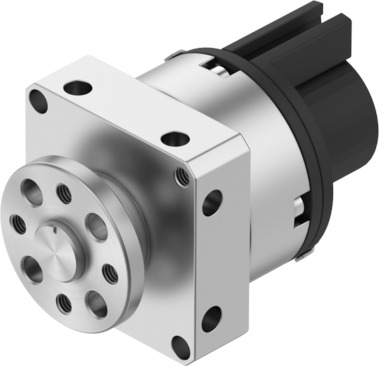

DSM-6-180-P-A-FW FESTO Rotary Actuator: A Superior Choice for Precise Angular Motion Control
2024-07-29In the field of automation control, accurate angular motion control is crucial for implementing complex mechanical movements. The FESTO DSM-6-180-P-A-FW rotary actuator, with its high-precision swing control, excellent buffering performance, and flexible mounting options, provides an efficient actuating element for industrial automation.

Product Features
- High-Precision Swing Control: A buffering angle of 0.5 degrees and a swing angle range of 0 to 180 degrees ensure precise motion control.
- Elastic Buffering Design: Equipped with elastic buffers at both ends to reduce impact and vibration, extending the service life of the equipment.
- Flexible Mounting Positions: Mounting positions are optional, adapting to various installation needs and spatial conditions.
- Double-Action Operating Mode: Suitable for both forward and reverse swing control, enhancing the flexibility of applications.
Technical Specifications
- Blade Structure: The blade design provides stable power transmission and control.
- Position Detection: Position detection is achieved through a proximity switch, improving the response speed and accuracy of the automation system.
- Working Pressure Range: 3.5 to 8 bar, suitable for various working pressure environments.
- Maximum Swing Frequency: At a working pressure of 6 bar, the maximum swing frequency can reach 3 Hz.
- Working Medium: Compatible with compressed air that meets ISO 8573-1:2010 standards.
Application Areas
The DSM-6-180-P-A-FW rotary actuator is suitable for various industrial automation applications such as automated machinery, robotic control, and precision positioning systems, especially in situations that require high-precision swing control.
The FESTO DSM-6-180-P-A-FW rotary actuator stands out as an ideal choice in the field of industrial automation with its high-precision swing control, elastic buffering design, and flexible mounting options. Choosing FESTO means choosing a more reliable and efficient solution for automation control.
