OVEL-5-H-10-P-VQ4-UC-C-A-H3 FESTO Vacuum Generator: An Efficient Solution for Vacuum Applications

2024-07-30 By xyj2024 0

In fields such as automation technology, medical equipment, and laboratory research, vacuum generators are a key component whose performance directly affects the effectiveness of system operations. FESTO’s OVEL-5-H-10-P-VQ4-UC-C-A-H3 vacuum generator offers an excellent solution for industrial applications with its high efficiency and reliable vacuum generation capabilities.

Product Overview

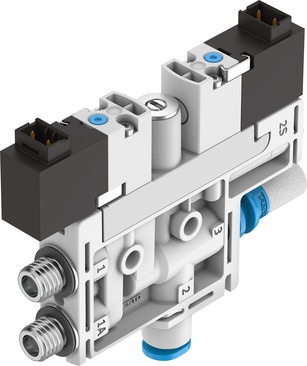

The OVEL-5-H-10-P-VQ4-UC-C-A-H3 vacuum generator is a high-performance vacuum device launched by FESTO. It adopts advanced design to achieve high vacuum levels and low noise operation, meeting the needs of various industrial applications.

Key Features

  1. Nominal Diameter of Laval Nozzle: 0.45 mm, ensuring precise vacuum control.
  2. Mesh Size: 10 mm, providing good air intake filtration for the vacuum generator.
  3. Normally Closed Muffler Design: Effectively reduces noise, improving the comfort of the working environment.
  4. Flexible Installation Position: Users can choose the installation position as needed.
  5. High Vacuum Degree: The maximum vacuum degree can reach 89%, meeting the needs of applications requiring high vacuum.
  6. Standard Filtration Level: 40 µm, effectively filtering impurities in compressed air.
  7. Button-Type Hand Control Device: Convenient for users to perform manual control.
  8. Electro-Controlled Ejector Pulse and Throttling Function: Provides precise vacuum control.
  9. Electro-Controlled Switching Valve: Facilitates the realization of automated control.
  10. T-Type Structural Features: Compact design saves space.
  11. Working Pressure for Maximum Suction Flow Rate: 0.3 Mpa, ensuring efficient air suction.
  12. Rated Working Pressure: 0.4 Mpa, suitable for various working environments.
  13. Working Medium: Compressed air compliant with ISO 8573-1:2010.
  14. Corrosion Resistance Level: CRC 2, with medium corrosion resistance.
  15. VDMA24364-B1/B2-L PWIS Compliance: Suitable for special industrial applications.
  16. Medium Temperature Range: 0 °C to 50 °C, adaptable to different environmental conditions.
  17. Protection Level: IP40, protecting the device from dust and water.
  18. Lightweight Product: Only 40 g, easy to carry and install.

Application Scenarios

The OVEL-5-H-10-P-VQ4-UC-C-A-H3 vacuum generator is suitable for the following fields:

  • Automated Equipment: Provides precise vacuum adsorption in automated robotic arms and conveyor systems.
  • Medical Equipment: Ensures the cleanliness and safety of the vacuum system in medical devices requiring sterile operations.
  • Laboratory Research: Conducts precise vacuum control experiments in scientific research laboratories.

FESTO’s OVEL-5-H-10-P-VQ4-UC-C-A-H3 vacuum generator stands out with its excellent performance, flexible installation options, and user-friendly operation interface, making it an ideal choice for industrial vacuum applications. It not only improves the work efficiency of the system but also enhances the convenience of operation and the precision of control through intelligent design. Choose FESTO for a reliable and efficient vacuum solution for your industrial system.
