QS-1/2-12-I FESTO Quick Connector: A Superior Choice for Efficient Pneumatic Connections

In pneumatic systems, the reliability and convenience of quick connectors are crucial for ensuring system efficiency. The QS-1/2-12-I quick connector from FESTO, with its standardized design and exceptional performance, provides an ideal solution for pneumatic connections.

Product Overview

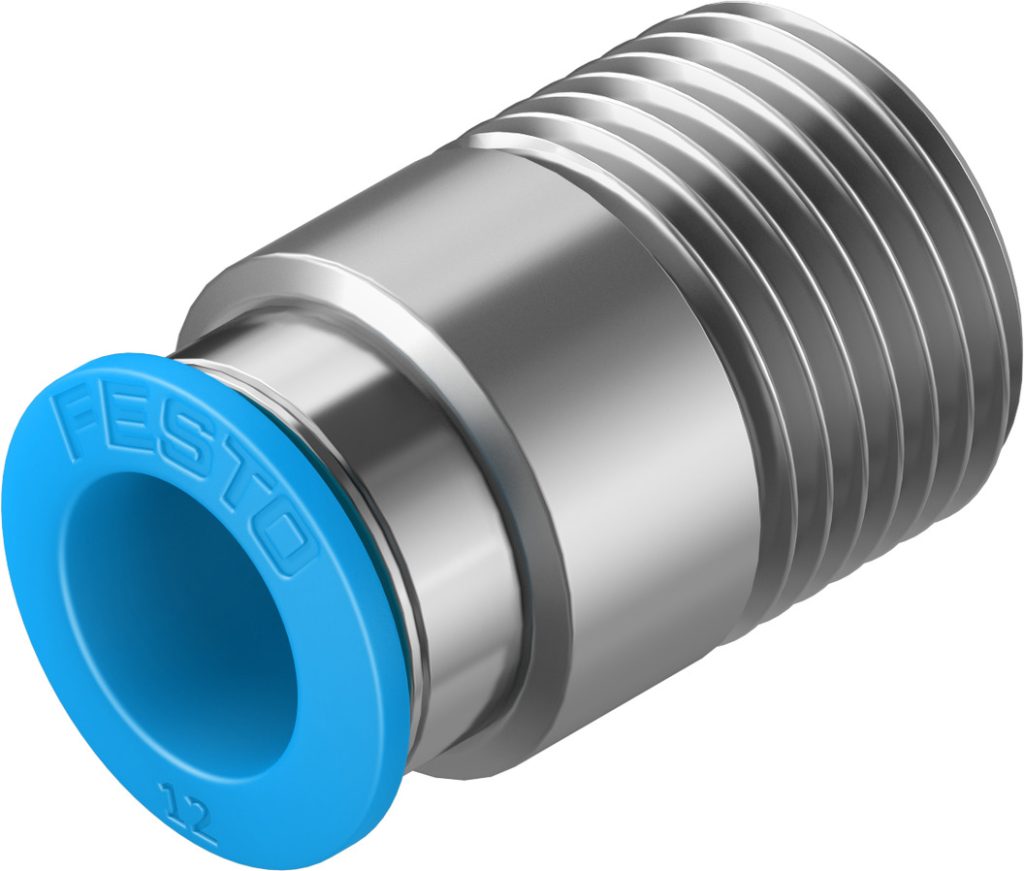

The FESTO QS-1/2-12-I quick connector is a standard pneumatic quick connector with a nominal diameter of 8.4 mm, suitable for quick connections of various pneumatic tools and equipment.

Structural Features

• In-line Design: Simplified structure for improved connection efficiency.
• Push-pull Principle: Easy one-handed operation for quick connection and disconnection.
• Optional Installation Position: Offers flexible installation options to suit different layout requirements.

Performance Parameters

• Working Pressure: Within the full temperature range of -0.095 Mpa to 0.6 Mpa (-0.95 bar to 6 bar), ensuring stable transmission.
• Pressure Depending on Temperature: Adjustable from -0.095 Mpa to 1.4 Mpa (-0.95 bar to 14 bar), adapting to different working conditions.
• Working Medium: Compatible with compressed air and water (liquid, ice-free), compliant with ISO 8573-1:2010 standard.

Materials and Compliance

• Corrosion Resistance Level: CRC 1, with basic corrosion resistance capabilities.
• RoHS Compliance: All materials meet RoHS standards, environmentally friendly and safe.
• Paint Wetting and Impingement Spray (PWIS): Compliant with VDMA24364-B1/B2-L standard.

Installation and Interfaces

• Hexagonal Installation: Specification of 8 mm for quick installation and removal.
• Pneumatic Interface: Air port 1 with external thread R1/2, air port 2 suitable for air hoses with an outer diameter of 12 mm, ensuring broad applicability.
• Release Ring Color: Blue, easy to identify.

Material Properties

• Housing Material: Nickel-plated brass, providing good corrosion resistance and durability.
• Release Ring Material: POM, ensuring strength and stability.
• Air Hose Seal Material: NBR, excellent sealing performance.
• Air Hose Clamp Material: High-alloy stainless steel, ensuring the solidity of the connection.

The FESTO QS-1/2-12-I quick connector, with its standardized design, exceptional performance, and flexible installation options, has become the first choice for quick and reliable connections in pneumatic systems. It not only provides stable pneumatic transmission performance but also meets the high standards of modern industry for environmental protection and reliability. Choose FESTO for an efficient, safe, and environmentally friendly pneumatic connection solution.
