LF-1/2-D-5M-MIDI-A FESTO Filter: Efficient Filtration for Assured Compressed Air Purity

In industrial production, the purity of compressed air is crucial for the normal operation of equipment and product quality. As a global leader in pneumatic components, FESTO’s LF-1/2-D-5M-MIDI-A filter stands out for its superior performance and reliability, making it a preferred choice for many enterprises. This article will provide a detailed introduction to the features and advantages of this filter.

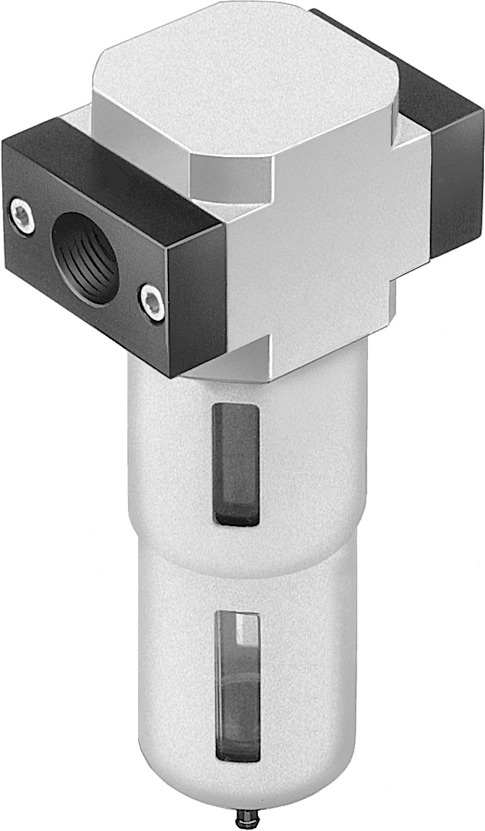

Product Overview: The FESTO LF-1/2-D-5M-MIDI-A filter is a highly efficient filtration device designed specifically for compressed air and inert gases. It uses sintered filtration technology combined with a condensate separator to ensure the cleanliness and dryness of the gas. Suitable for various working environments, this filter provides a stable gas supply whether in industrial automation or laboratory applications.

Technical Specifications:

• Series: Midi
• Model: D
• Installation Position: Vertical +/-5°
• Filtration Rating: 5 µm
• Condensate Drain: Fully Automatic
• Protective Cover: Metal Protective Cover
• Symbol: 00991520
• Working Pressure: 2 bar to 12 bar
• Standard Rated Flow: 2000 l/min (according to DIN 1343 standardization)
• Working Medium: Compressed air, compliant with ISO 8573-1:2010 [7:9:-]; Inert gases
• Corrosion Resistance Class: CRC 2 – Moderate Corrosion Resistance
• Paint Wetness Defect Substance (PWIS) Compliance: VDMA24364-B1/B2-L
• Storage Temperature: -10 °C to 60 °C
• Outlet Air Purity Level: Compressed air, compliant with ISO 8573-1:2010 [6:8:4]; Inert gases
• Medium Temperature: 5 °C to 60 °C
• Ambient Temperature: 5 °C to 60 °C
• Product Weight: 700 g
• Installation Method: Tubular Installation
• Accessories Included: Air interface, port 1 G1/2; Air interface, port 2 G1/2
• Material Description: RoHS compliant, filter material PE, housing material die-cast zinc, bowl cover material PC

Product Features:

1. Efficient Filtration: A filtration rating of 5 µm effectively removes solid particles from compressed air, ensuring gas purity.
2. Automatic Drainage: Fully automatic condensate drainage device, eliminating the need for manual intervention and reducing maintenance costs.
3. Corrosion Resistance: Moderate corrosion resistance, suitable for various chemical environments, extending the product’s service life.
4. Material Safety: RoHS compliant materials ensure product environmental safety.
5. Easy Installation: Tubular installation method for quick and convenient deployment.

The FESTO LF-1/2-D-5M-MIDI-A filter, with its excellent filtration performance, automatic drainage function, and corrosion resistance, provides reliable protection for compressed air systems. Whether in harsh industrial environments or laboratories requiring high-precision gas supply, it is an ideal choice. Choose FESTO for quality and trust.
