# HGWM-08-EO-G8 FESTO Swing Clamp: Precision Gripping for Efficient Automation

2024-08-01In the field of automated production, accurate and efficient gripping devices are crucial for enhancing production efficiency and ensuring product quality. The FESTO HGWM-08-EO-G8 swing clamp stands out as an ideal choice for automated assembly and handling tasks with its exceptional performance and reliability. This article will provide a detailed introduction to the technical features and application advantages of this swing clamp.

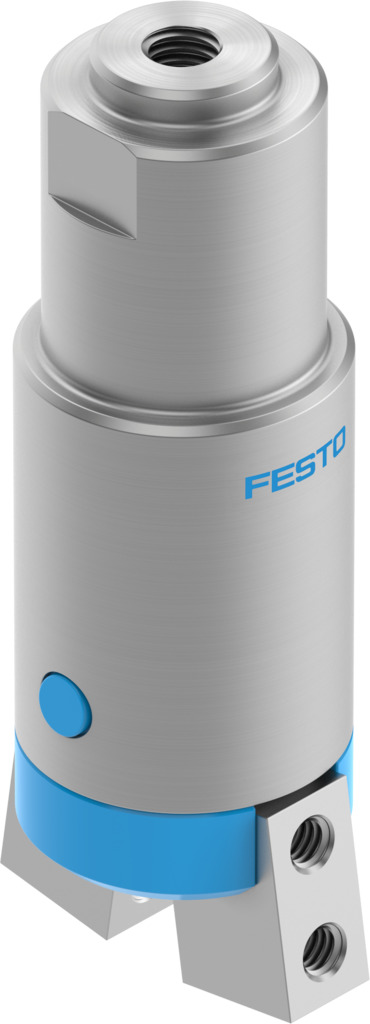

Product Overview: The FESTO HGWM-08-EO-G8 swing clamp is an automated device designed for precise gripping. It uses pneumatic driving and has a single-acting working mode, capable of rapid response and precise control to meet the needs of high-speed automated production lines.

Technical Specifications:

- Specification: 8
- Maximum gap of swing claw clamp ax, ay: 0.5 degrees
- Maximum claw clamp gap Sz: 0.03 mm
- Maximum opening angle: 17 degrees
- Repeatability of the claw clamp: ≤0.02 mm
- Number of claw clamps: 2
- Drive system: Pneumatic
- Working mode: Single-acting
- Claw function: Angular
- Claw force backup: None
- Structural features: Wedge drive
- Position detection: None
- Symbol: 00991897
- Working pressure: 2 bar to 8 bar
- Maximum working frequency of the claw: 4 Hz
- Shortest opening time at 6 bar: 2.7 ms
- Shortest closing time at 6 bar: 1.2 ms
- Working medium: Compressed air, compliant with ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class CRC: 2 – Moderate corrosion resistance
- Paint wetness defect substance (PWIS) compliance: VDMA24364-B2-L
- Ambient temperature: 5 °C to 60 °C
- Spring return torque: 0.005 Nm
- Total claw torque when closed at 6 bar: 22 Ncm
- Maximum force on the claw clamp Fz, static: 7 N
- Maximum torque of the claw clamp Mx, static: 0.2 Nm
- Maximum torque of the gripper My, static: 0.2 Nm
- Maximum torque of the gripper Mz, static: 0.2 Nm
- Product weight: 13 g
- Installation method: Clamping
- Pneumatic interface: M3
- Material description: RoHS compliant
- End cap material: POM
- Housing material: High-alloy stainless steel
- Claw clamp material: High-alloy steel

Product Features:

- High-Precision Gripping: The small gap of the swing claw clamp and high repeatability ensure stable and reliable gripping.
- High-Speed Response: With a maximum working frequency of up to 4 Hz, it adapts to high-speed automated production lines.
- Corrosion-Resistant Design: Made of high-alloy stainless steel and high-alloy steel materials, it has moderate corrosion resistance.
- Lightweight Design: The lightweight product is easy to install and integrate into automated systems.
- RoHS Compliant Materials: Environmentally safe and compliant with international environmental standards.

The FESTO HGWM-08-EO-G8 swing clamp demonstrates excellent performance in automated production with its high precision, high-speed response, and corrosion-resistant design. Whether in precision assembly or rapid handling tasks, it provides a reliable gripping solution. Choose FESTO for an efficient and accurate automation partner.
