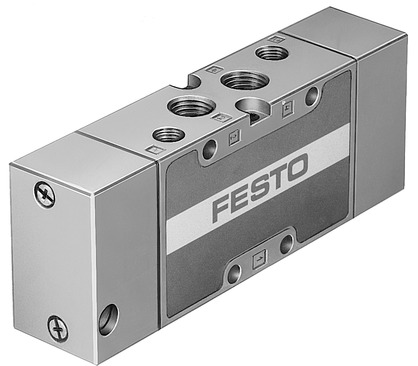

J-5-1/4-B-EX FESTO Pneumatic Control Valve: Versatility and Safety in Industrial Automation

In the intricate world of industrial automation, control valves are the linchpin for managing the flow of gases and fluids with precision. The FESTO J-5-1/4-B-EX pneumatic control valve stands out with its dual solenoid functionality and robust safety features, making it a preferred choice for various industrial applications.

Key Features

• Dual Solenoid Operation: A two-position five-way valve that provides versatile control options for complex pneumatic systems.
• Pneumatic Actuation: Driven by compressed air, ensuring quick response and compatibility with existing pneumatic infrastructure.
• Compact Size: With a width of only 32 mm, it is designed for applications where space is at a premium.
• High Standard Rated Flow: Capable of a remarkable 1600 l/min flow rate as standardized by DIN 1343.
• Wide Operating Pressure Range: Suitable for a broad pressure range from -0.09 Mpa to 1 Mpa (-0.9 bar to 10 bar).

Technical Specifications

• Pilot Type: Direct acting, with an external pilot source for precise control.
• Reversible Flow: Can handle bidirectional flow, offering flexibility in system design.
• Exhaust Function: Equipped with a throttling option for controlled pressure release.
• Sealing Principle: Soft sealing for reliable operation and longevity.
• Mounting Position: Selectable, allowing for versatile installation in different system setups.
• Pilot Pressure: Operates efficiently within a range of 0.2 Mpa to 1 Mpa (2 bar to 10 bar).
• Max Switching Frequency: Up to 3 Hz, catering to high-speed operation requirements.
• Ingress of Fluid: Designed with an overlap that ensures tight shut-off.
• ATEX and UKEX Compliance: Certified for use in potentially explosive environments, with specific classifications for gas (II 2G) and dust (II 2D).
• Explosion-Proof Temperature Range: Suitable for environments with temperatures between -10°C and +60°C.
• Corrosion Resistance: Rated CRC 1, indicating low corrosion resistance suitable for general industrial conditions.
• PWIS Compliance: Meets VDMA24364-B1/B2-L standards for paint wetting and defect prevention.
• Working Medium: Compatible with compressed air conforming to ISO 8573-1:2010 [7:4:4].

Application Fields

The J-5-1/4-B-EX pneumatic control valve is suitable for a wide range of applications, including manufacturing automation, process control, medical equipment, and any industry requiring precise and safe pneumatic control.

The FESTO J-5-1/4-B-EX pneumatic control valve combines high performance with safety, offering a reliable solution for industrial automation. With its dual solenoid operation, wide flow capacity, and compliance with stringent safety standards, this valve ensures efficient and secure operation in various applications.
