HGDS-PP-12-P1-A-B FESTO Swing/Gripper Unit: Agile Manipulation for Efficient Automation

In automated production lines, precise grasping and handling are key to enhancing production efficiency. FESTO, a pioneer in global automation technology, has introduced the HGDS-PP-12-P1-A-B swing/gripper unit, a versatile pneumatic device that combines the functions of swinging and gripping for efficient automation applications.

Product Overview

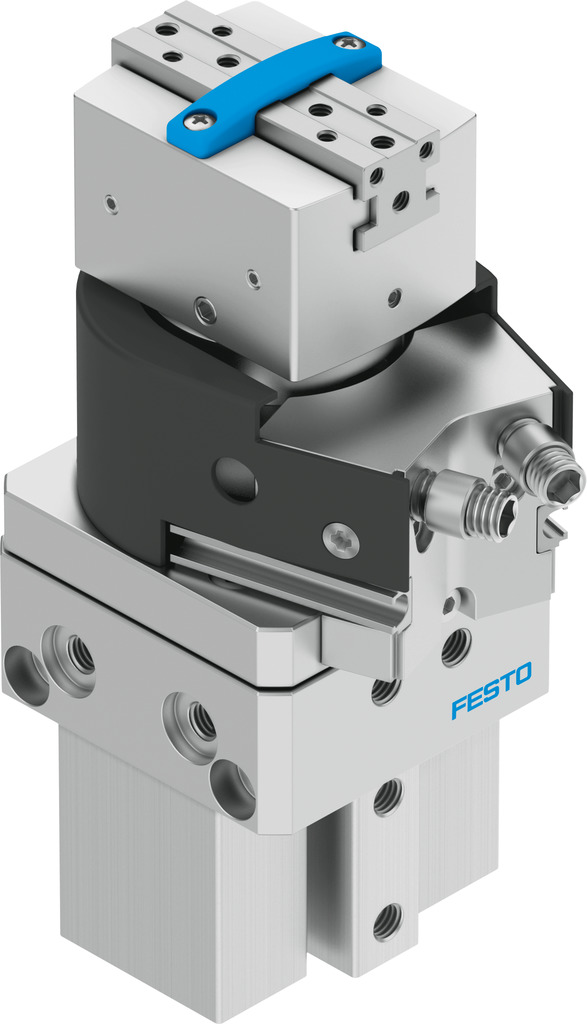

The HGDS-PP-12-P1-A-B swing/gripper unit is a multifunctional pneumatic device designed by FESTO for automated applications. It achieves flexible manipulation of various workpieces through accurate swinging and grasping movements.

Core Features

Wide Range of Rotary Angle Adjustment

• Adjustable from 0 degrees to 210 degrees, offering a broad range of motion angles.

Precise Gripper Control

• Each gripper’s stroke is 2.5mm, ensuring grasping accuracy.

Efficient Swing Drive Buffer

• Equipped with elastic buffers at both ends, adjustable terminal position, and fixed stops.

Flexible Installation Options

• Installation position is optional, supporting installation via internal threads, through-holes, or dovetail slots.

Accurate Position Detection

• The positions of the grippers and the swing drive can be detected using proximity switches.

Powerful Grasping Force

• At a working pressure of 6 bar, each gripper’s grasping force reaches 42N, with a total grasping force of 84N.

Stable Working Performance

• The working pressure range is 3 bar to 8 bar, ensuring stable operation of the device under various pressures.

Corrosion-Resistant Materials

• Materials comply with RoHS standards, with high-alloy stainless steel grippers offering moderate corrosion resistance.

Technical Specifications

• Size Specification: 12, suitable for medium-load grasping and handling.
• Maximum Swing Gripper Clearance: ax, ay 0.1 degree, ensuring precise alignment of the grippers.
• Maximum Gripper Clearance: Sz 0.02mm, ensuring stable grasping.
• Swing Angle: 210 degrees, providing a large angle of swing capability.
• Number of Grippers: 2, dual-grippers design provides better grasping balance.
• Operating Mode: Double-acting, suitable for applications requiring bidirectional control.
• Working Pressure: 3 bar to 8 bar, covering a wide range of pressure requirements.
• Working Medium: Compressed air, compliant with ISO 8573-1:2010 standard.
• Ambient Temperature: 5°C to 60°C, adaptable to various environmental conditions.

FESTO’s HGDS-PP-12-P1-A-B swing/gripper unit, with its agile manipulation capabilities, efficient automation performance, and precise grasping control, is an ideal choice for automated production lines. It not only enhances production efficiency but also ensures the safety and reliability of operations. Choose FESTO for an efficient, reliable automation solution.
