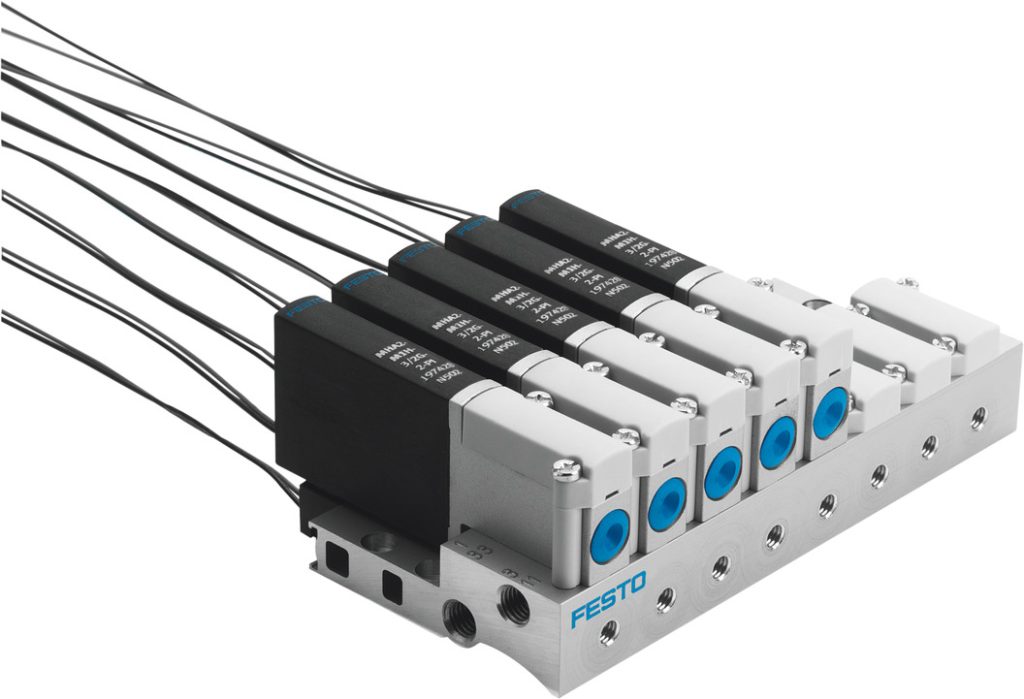

MHA2-MS1H-3/2O-2-K FESTO Solenoid Valve: Efficient Control, Precise Operation

In automated control systems, solenoid valves are crucial components for achieving rapid and precise control of gas flow. The MHA2-MS1H-3/2O-2-K solenoid valve from FESTO, with its efficient control performance and diverse functions, provides an ideal solution for pneumatic control.

Product Overview

The MHA2-MS1H-3/2O-2-K solenoid valve features the following core attributes:

• Valve Function: 2-way 3-position, normally open, single-solenoid control for precise gas flow direction control.
• Actuation Method: Electro-pneumatic, driven by a 24V DC operating voltage.
• Width: 10mm, a compact design suitable for applications with limited space.

Technical Specifications

• Standard Rated Flow: 100 l/min, standardized according to DIN 1343, ensuring the stability of the flow rate.
• Working Pressure Range: -0.09 Mpa to 0.8 Mpa (-0.9 bar to 8 bar), accommodating various pressure requirements.
• Protection Class: IP55, offering good dust and water protection.
• Certifications: Including RCM mark, c UL us certification, CE certification, etc., complying with international safety standards.

Performance Parameters

• Nominal Bore: 2mm, suitable for precise control of gas in small pipelines.
• Response Time: Closing time 2ms, opening time 1.7ms, ensuring rapid response speeds.
• Maximum Switching Frequency: 330 Hz, meeting the demands of high-frequency switching.

Material Description

• RoHS Compliance: In compliance with the EU RoHS directive, restricting the use of harmful substances.
• Seal Material: HNBR and NBR, providing excellent sealing performance.
• Housing Material: Coated die-cast zinc, enhancing corrosion resistance and durability.

Application Scenarios

The MHA2-MS1H-3/2O-2-K solenoid valve is widely used in the following fields:

• Automation Equipment: Achieving precise pneumatic control in automation equipment.
• Pneumatic Control Systems: Serving as a core control unit in complex pneumatic control systems.
• Clean Room Environment: Clean room class 6, compliant with ISO 14644-1, suitable for environments with high cleanliness requirements.

Product Advantages

• Efficient Control: Electro-pneumatic drive for rapid response to gas flow control demands.
• Precise Operation: 2-way 3-position normally open design for accurate flow control.
• Durable Materials: High-quality materials ensure the product’s durability and stability.
• International Certifications: With multiple international safety certifications, ensuring the product’s safety and reliability.

The FESTO MHA2-MS1H-3/2O-2-K solenoid valve, with its efficient control performance, precise operation, and durable material choices, provides an ideal pneumatic control component for users. Choosing FESTO means choosing a more reliable and efficient pneumatic control system.
