DSBC-32-320-PPVA-N3 FESTO ISO Standard Cylinder: The Precision Choice for Industrial Automation

In the field of industrial automation, the precision, stability, and durability of cylinders as actuating components are crucial. The DSBC-32-320-PPVA-N3 ISO Standard Cylinder introduced by FESTO, with its high-standard performance and diverse functions, meets the modern industry’s demand for efficient automation.

Product Overview:

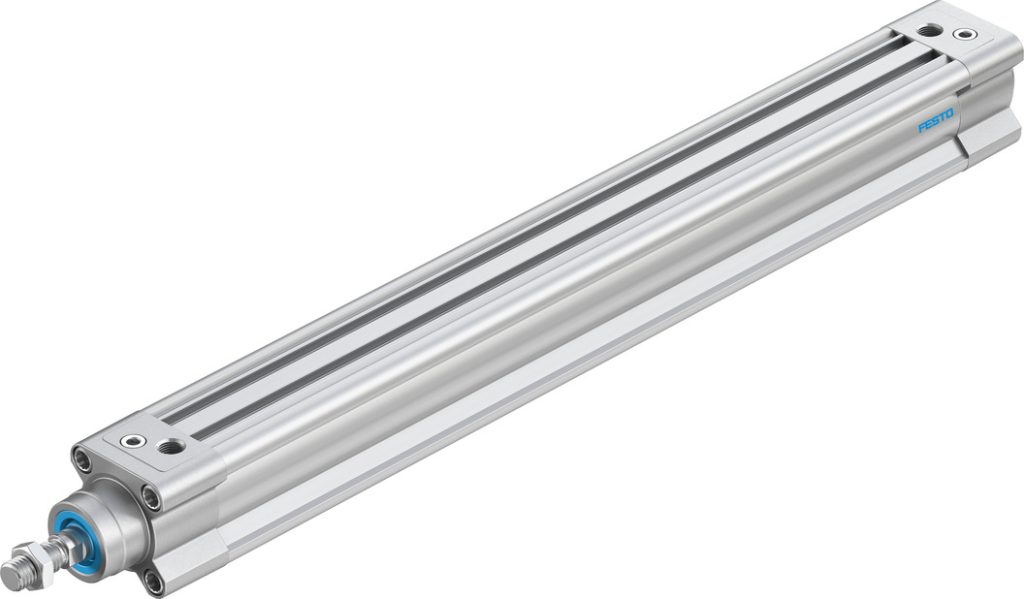

The DSBC-32-320-PPVA-N3 ISO Standard Cylinder is designed by FESTO in accordance with the ISO 15552 standard. It features a stroke of 320mm and a piston diameter of 32mm, suitable for applications requiring a longer stroke and greater force output.

Product Features:

• Long Stroke Design: A stroke of 320mm, suitable for applications with long-distance linear movement.
• Pneumatic Buffering: Air cushioning adjustable at both ends, reducing motion impact and extending equipment life.
• Flexible Installation Position: The installation position is optional, adapting to various installation requirements.
• Double-Acting Operating Mode: Provides bidirectional force output, meeting a variety of working conditions.

Technical Specifications:

• Piston Rod Thread: M10x1.25, in line with international standards for easy connection.
• Working Pressure Range: 0.06 Mpa to 1.2 Mpa, offering a broad range of working pressures.
• Working Medium: Compressed air, compliant with the ISO 8573-1:2010 standard.

Material and Environmental Adaptability:

• Corrosion Resistance Grade: CRC Level 2, with moderate corrosion resistance.
• Clean Room Class: Class 6, compliant with ISO 14644-1, suitable for clean environments.
• Ambient Temperature Range: -20°C to 80°C, adaptable to a variety of ambient temperatures.

Installation and Interface:

• Installation Method: Can be installed via internal threading or with accessories.
• Pneumatic Interface: G1/8, easy to connect with pneumatic systems.

Structure and Performance:

• Piston Rod End: External thread design, convenient for connection and installation.
• Position Detection: Position detection can be performed through proximity switches, enhancing the precision of automated control.
• Theoretical Force Values: At 6 bar pressure, the theoretical force values for the return and forward strokes are 415 N and 483 N, respectively.

FESTO’s DSBC-32-320-PPVA-N3 ISO Standard Cylinder, with its precise motion control, strong adaptability, and high-standard material quality, has become an ideal choice in the field of industrial automation. It not only enhances production efficiency but also ensures the safety and reliability of operations.
