PUN-H-8X1,25-NT-400 FESTO Plastic Pneumatic Hose: A Combination of High Performance and Reliability

In automated control systems, the performance of pneumatic hoses as key components for the transmission of pneumatic signals directly affects the response speed and stability of the entire system. FESTO’s PUN-H-8X1,25-NT-400 plastic pneumatic hose, with its excellent performance and reliability, meets the demand for high-quality hoses in industrial automation.

Product Overview:

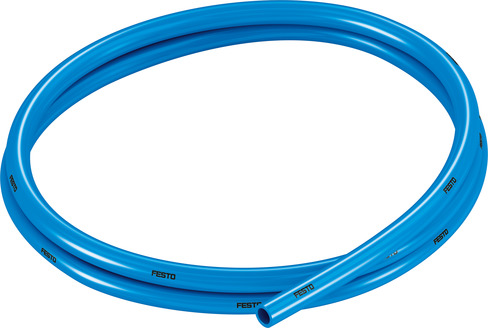

The PUN-H-8X1,25-NT-400 plastic pneumatic hose is a high-performance hose launched by FESTO. It is made of TPE-U(PU) material, which offers good chemical resistance and wear resistance, suitable for various pneumatic control systems.

Product Features:

• Outer Diameter of 8mm: Standard size for easy connection with other pneumatic components.
• High Flow Design: Matches a bending radius of 37mm to ensure smooth airflow.
• Suitable for Drag Chains: Designed for use in drag chains, adapting to dynamic work environments.
• Wide Working Pressure Range: From -0.095 Mpa to 0.6 Mpa, meeting different working pressure requirements.

Technical Specifications:

• Inner Diameter: 5.7mm, ensuring sufficient air flow.
• Minimum Bending Radius: 21mm, facilitating layout design during installation.
• Working Pressure: Within the range of -0.95 bar to 6 bar, ensuring stable system operation.
• Operating Temperature: Hose performance is stable in ambient temperatures from -35°C to 60°C.

Materials and Certifications:

• Material: TPE-U(PU), RoHS compliant, non-toxic, and environmentally friendly.
• Fire Resistance Test: Complies with the UL94 HB standard, ensuring safe usage.
• PWIS Compliance: Meets VDMA24364-B2-L, suitable for special industrial environments.
• Certification: Certified by TÜV (German Technical Supervisory Association), certificate number B 013277 0506 00.

Application Scenarios:

The PUN-H-8X1,25-NT-400 plastic pneumatic hose is widely used in automated machinery, pneumatic control systems, hydraulic equipment, and other fields, especially in industrial environments that require high wear resistance and chemical resistance.

FESTO’s PUN-H-8X1,25-NT-400 plastic pneumatic hose, with its high performance, high reliability, and environmentally friendly materials, has become an ideal choice in the field of industrial automation. It not only enhances system performance but also ensures the safety and durability of operations.
